Details
Single crystal components: 120 pieces
Output power: 585-605W
Maximum efficiency: 21.4 percent
Power tolerance: 0~+5W
One sided backboard, two sided glass
600W+ Ultra high power, 21.4% component efficiency

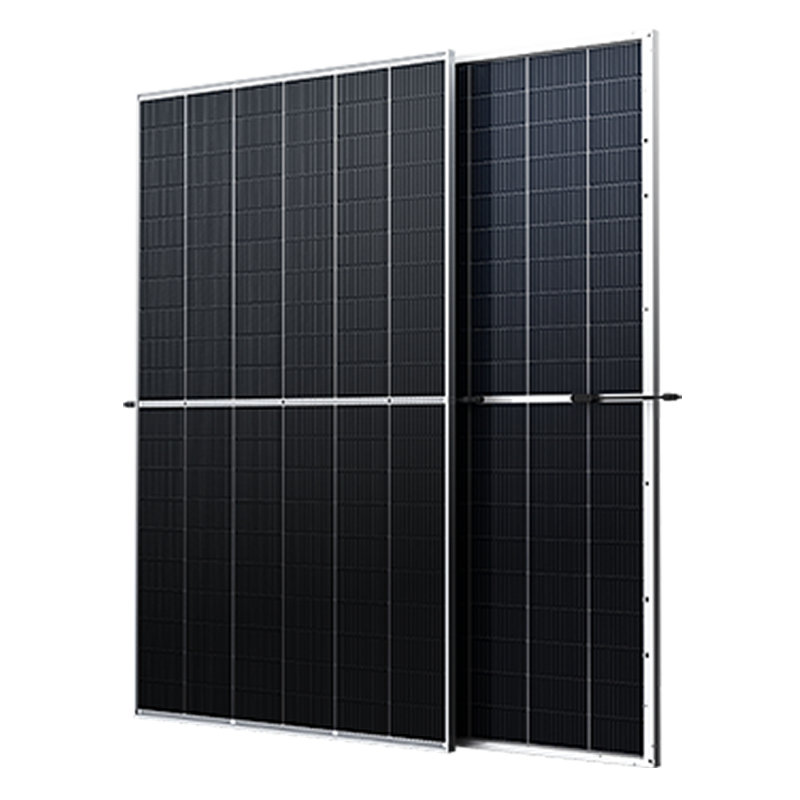

The Supreme series is based on 210mm large size silicon wafer, PERC single crystal battery, using innovative density version design, power can break 600W, efficiency up to 21.4%. The excellent temperature coefficient and low irradiation performance of the Supreme series improve the energy generation of the components, which is large and extraordinary. Instead of simply stacking power, the efficiency of the components is improved simultaneously.
Low voltage, high series power, single series power increased by 41%
In order to improve system efficiency and reduce BOS as the permanent goal of component design, the R&D team adopts the design idea of low voltage and high series power. Take the 600W Supreme component as an example. Under typical conditions, 33 components can be installed per string. Compared with other brand products, the power of a single series is increased by about 41%, which can reduce the consumption of 15% bracket, 17% bracket basic consumption and 35% bushbox number. At the same time, it can save 11% cable consumption and 7% construction cost, creating an innovative technological breakthrough and promoting the photovoltaic industry into the 600W+ era.
Excellent product reliability

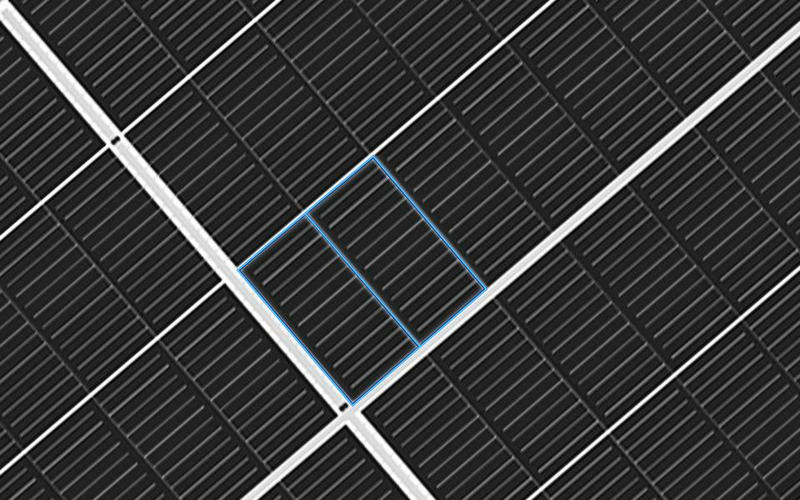

The low heat spot temperature of the Supreme component reduces the failure rate and significantly improves the safety performance. The stress distribution of multiple main grids against hidden cracks is more uniform, and slight hidden cracks or fragments do not affect the power generation, with higher reliability. Trina Solar's MBB technology is mature, and the cumulative shipment of components equipped with MBB technology is far ahead.
Download information >>>
