Details
Single crystal components: 120 pieces
Output power: 580-600W
Maximum efficiency: 21.2 percent
Power tolerance: 0~+5W
One sided backboard, two sided glass

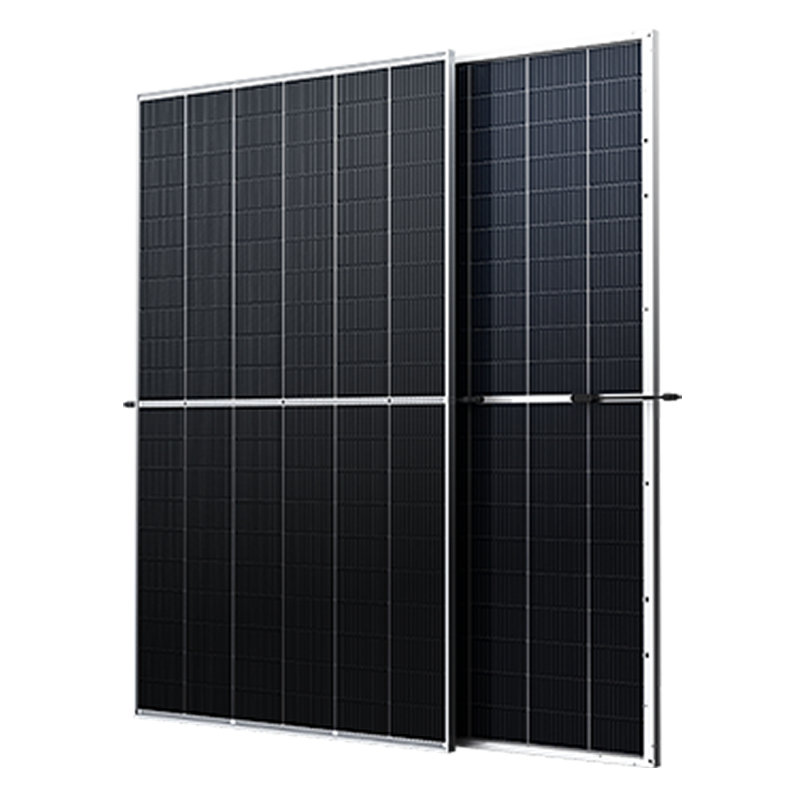

600W+ Ultra high power, 21.2% module efficiency
The Supreme series is based on 210mm large size silicon wafer, PERC single crystal battery, using innovative density version design, power can break 600W, efficiency up to 21.2%. The excellent temperature coefficient and low irradiation performance of the Supreme series improve the energy generation of the components, which is large and extraordinary. Instead of simply stacking power, the efficiency of the components is improved simultaneously.
Low voltage, high series power, single series power increased by 41%
In order to improve system efficiency and reduce BOS as the permanent goal of component design, the R&D team adopts the design idea of low voltage and high series power. Take the 600W Supreme component as an example. Under typical conditions, 33 components can be installed per string. Compared with other brand products, the power of a single series is increased by about 41%, which can reduce the consumption of 15% bracket, 17% bracket basic consumption and 35% bushbox number. At the same time, it can save 11% cable consumption and 7% construction cost, creating an innovative technological breakthrough and promoting the photovoltaic industry into the 600W+ era.
Advanced component system integration solution

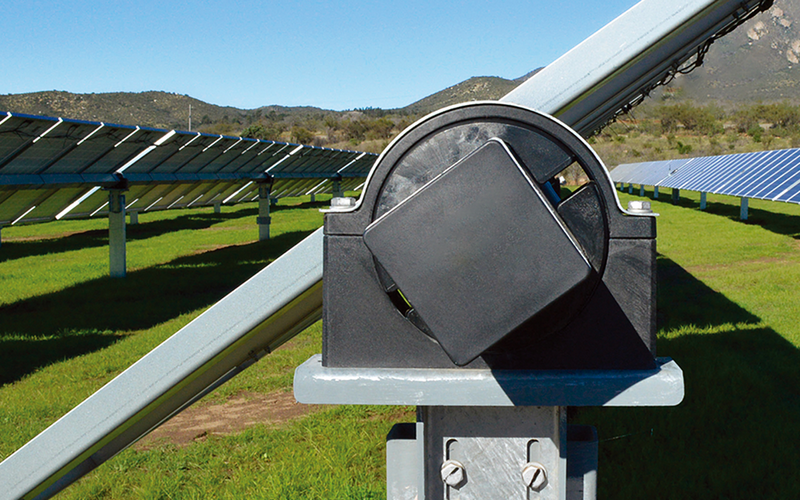

The Supreme series components are compatible with the market mainstream inverter and bracket systems. Trina Intelligent optimal solution, on the basis of Trina Supreme series components, with customized design of NCLAVE support, the new system design scheme to ensure the safety and reliability of the system at the same time, in order to bring the performance of 210 components to the extreme. In addition, for the special battery structure of the 210 module, Trina Intelligent Allocation research and development team will develop a new algorithm model, which can bring an additional 1-2% power generation gain.
