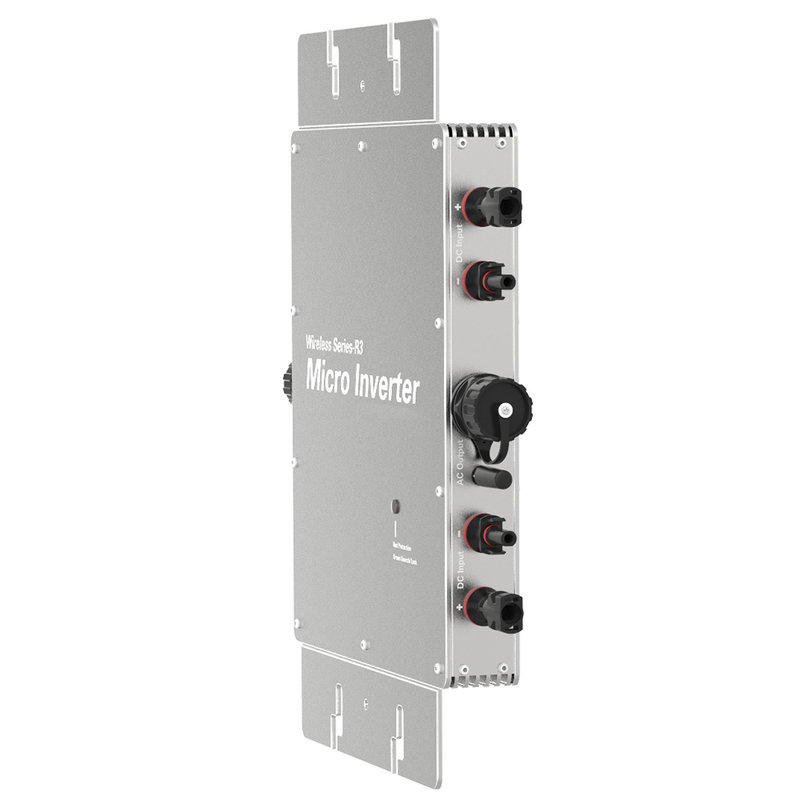

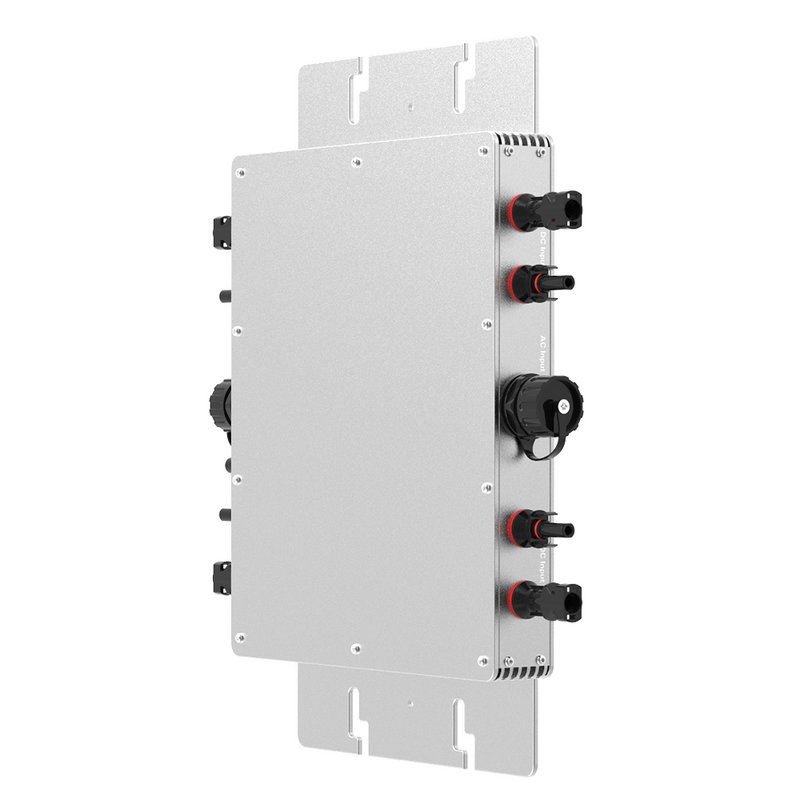

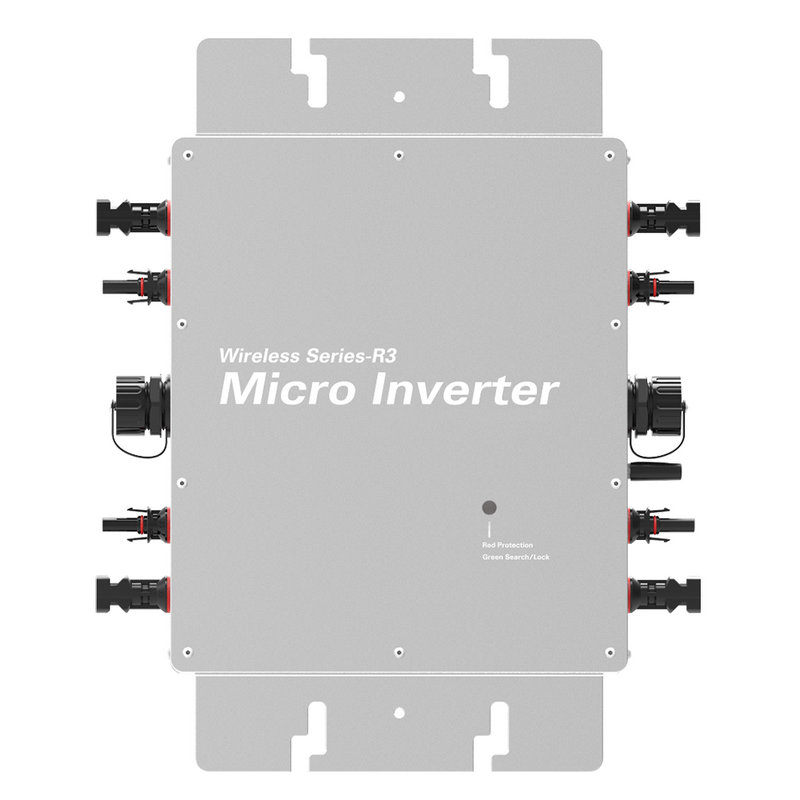

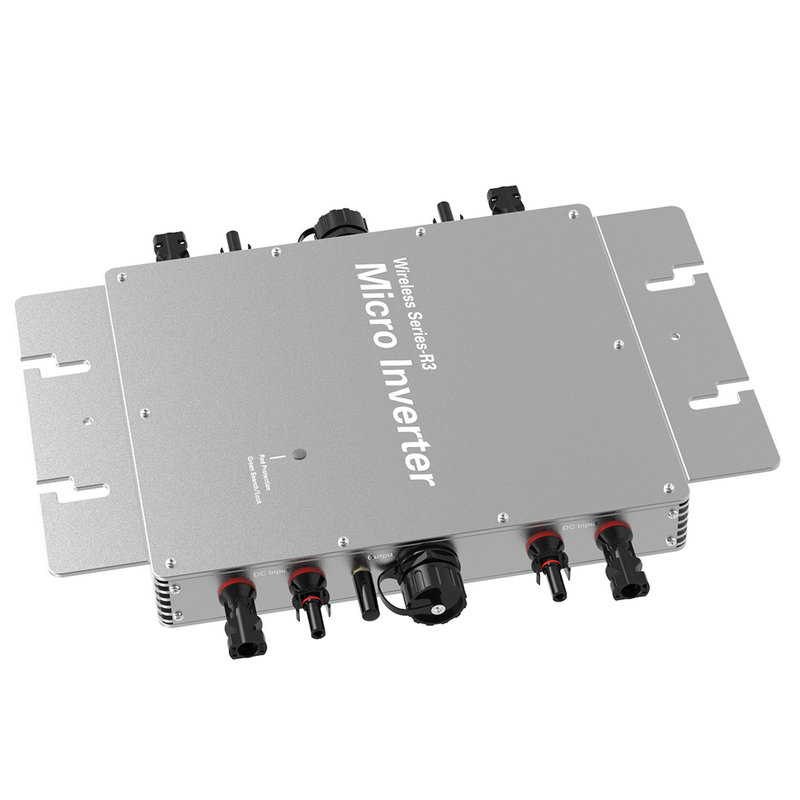

Details
Maximum input power: 4*750W
Open circuit voltage range: 30-54V
Maximum working current: 4*23A
Output power: 2400W
Output voltage: 120V/240V
Output current: 20A/10.5A
Output frequency: 48-51Hz/58-61Hz

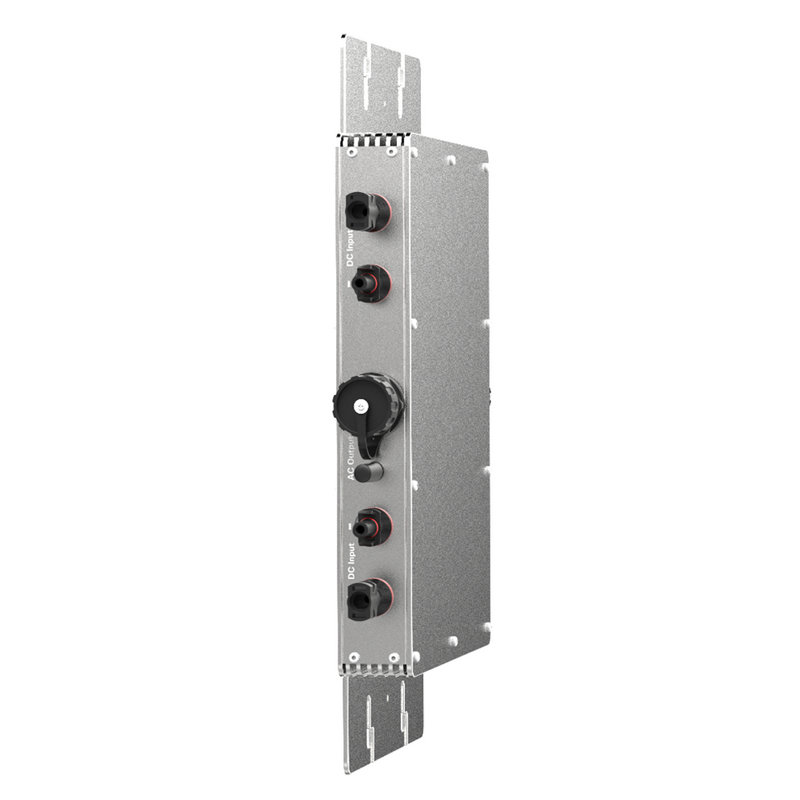

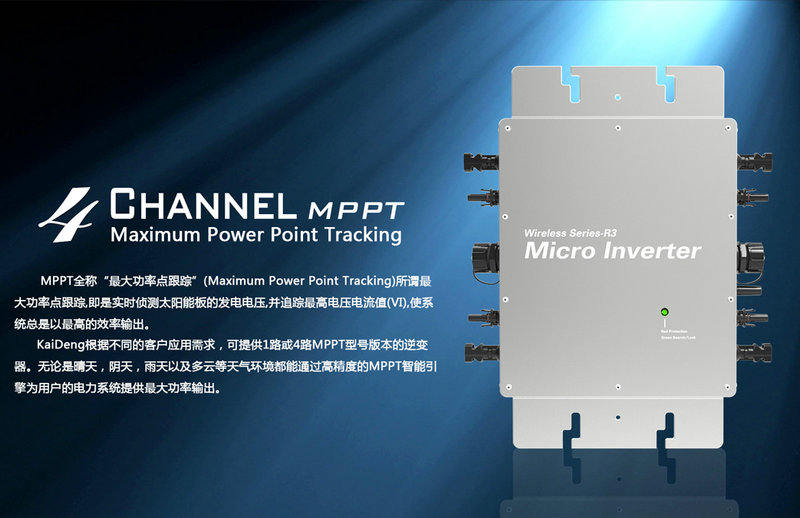

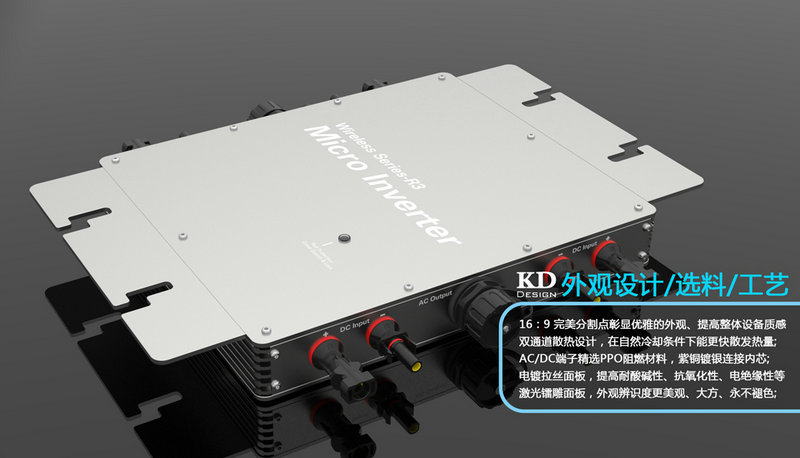

The fifth generation of WVC series communication products using waterproof flow line design, can better provide heat dissipation function for the equipment. The built-in maximum Power Point tracking engine (MPPT) can better capture changes in light, even in rainy weather, through which it can maximize the capture and collection of sunlight. The inverter is compatible with a variety of conventional solar panels with open circuit voltage of 22~60V, and the best performance of the panels can be brought into play through technical means. The power output mode of Kaiden micro inverter is reverse transmission technology. The power is supplied to the load first, and then the excess power is uploaded to the local grid. Its conversion efficiency is as high as 95%.
Product introduction:
Product parameters:

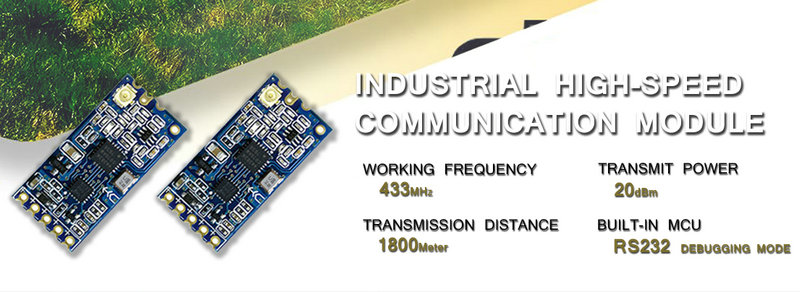

| Model number | WVC-2400 | |
| Maximum input power | 4*750W | |
| Output voltage mode | 120V/230VAutomatic switching | |
| Solar panel open circuit voltage range | 30-54V | |
| Peak power tracking voltage | 22-60V | |
| Minimum/maximum starting voltage | 22-60V | |
| Maximum DC short circuit current | 4*28A | |
| Maximum input working current | 4*23A | |
| Output parameter | @120V | @230V |
| Peak output power | 2600Watt | 2600Watt |
| Peak output power | 2400Watt | 2400Watt |
| Rated output current | 20A | 10.5A |
| Rated voltage range | 80-160VAC | 180-280VAC |
| Rated frequency range | 48-51Hz/58-61Hz | 48-51Hz/58-61Hz |
| Power factor | >99% | >99% |
| Number of circuit connections per string | 2 sets (single phase) | 4pcs (single phase) |
| Output efficiency | @120V | @230V |
| Static MPPT efficiency | 99.5% | 99.5% |
| Maximum output efficiency | 95% | 95% |
| Night loss power | <1w | <1w |
| Total harmonic distortion | <5% | <5% |
| Appearance and technical characteristics | ||
| Operating temperature range | -40℃ to +65℃ | |
| Size (mm) | 370*300*42 | |
| Net weight | 3.0kg | |
| Waterproofing class | IP65 | |
| Heat dissipation mode | self-cooling | |
| Communication mode | 433Mhz communication mode | |
| Power transmission mode | Reverse transmission, load first | |

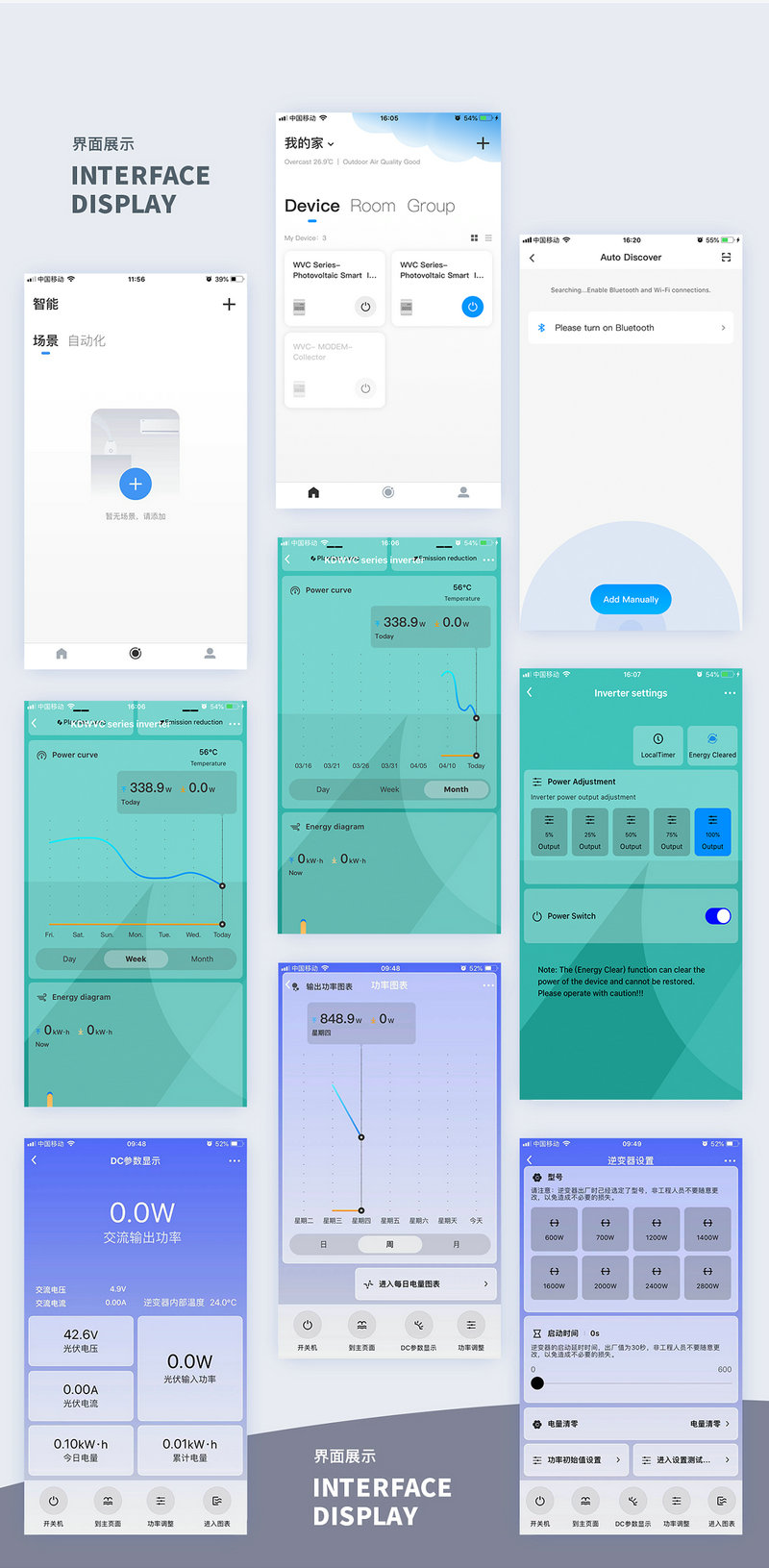

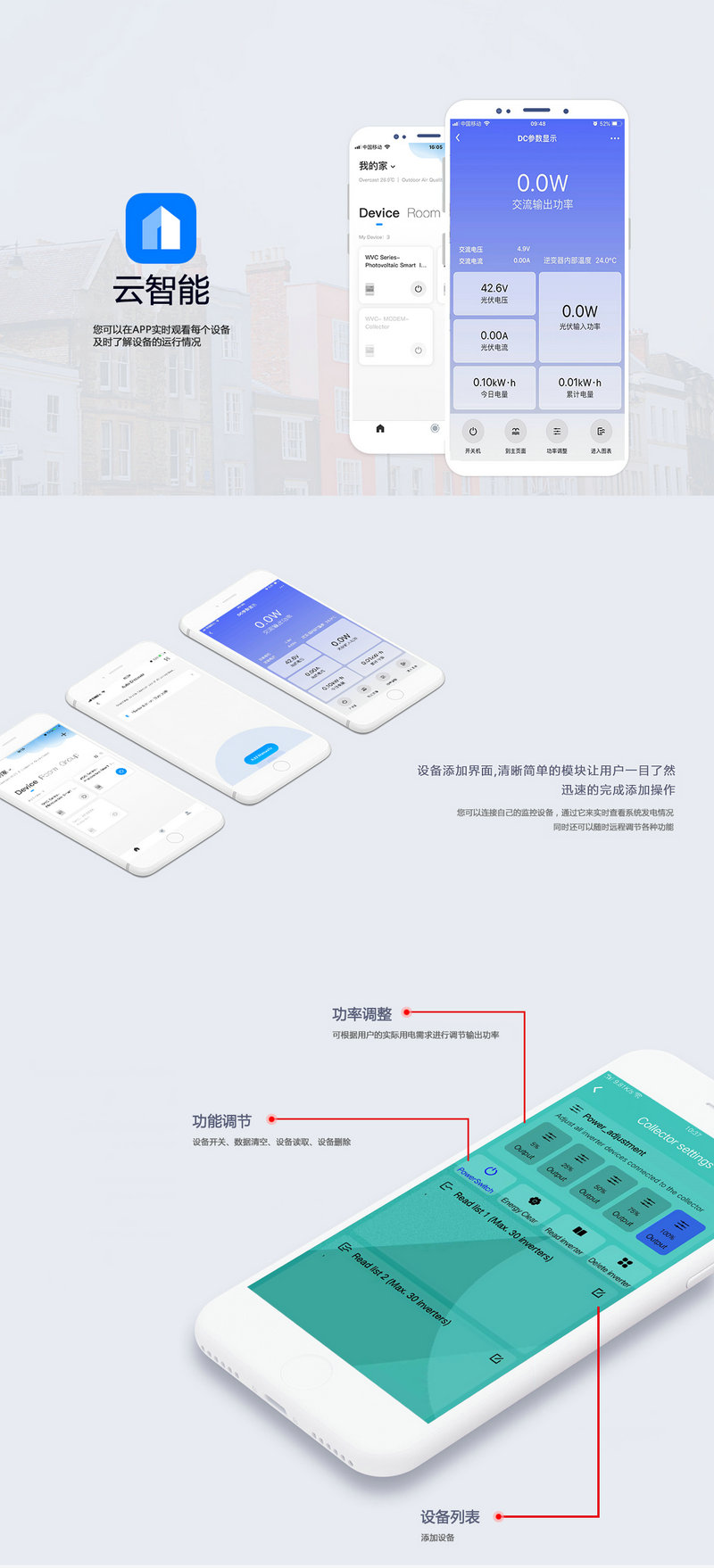

| Monitoring system | App | |
| Electromagnetic compatibility | EN50081.Party EN50082.Party 1 | |
| Grid disturbance | En 61000-3-2 Safety Regulation 62109 | |
| Power grid detection | DIN VDE 0126 | |
| certificate | CE, appearance patent | |
| Packing weight | ||
| specification | Single set (packing) | FCL (4 sets) |
| Gross weight | 4.36Kg | 18.38Kg |
| Size (mm) | 430*375*140 | 430*405*380 |

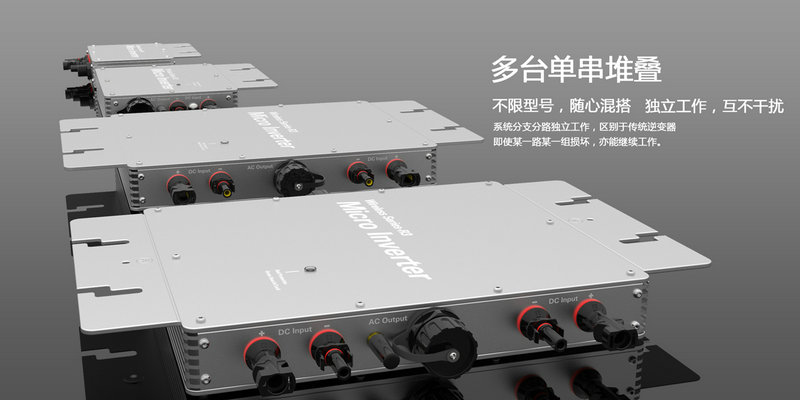

Easy to install

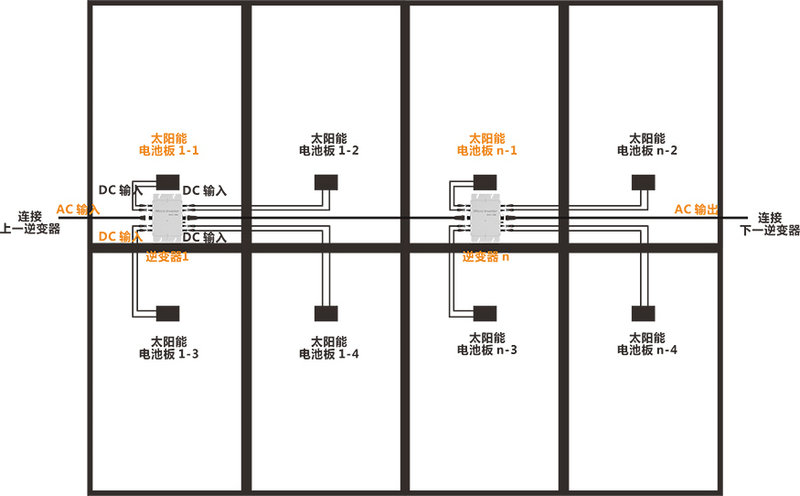

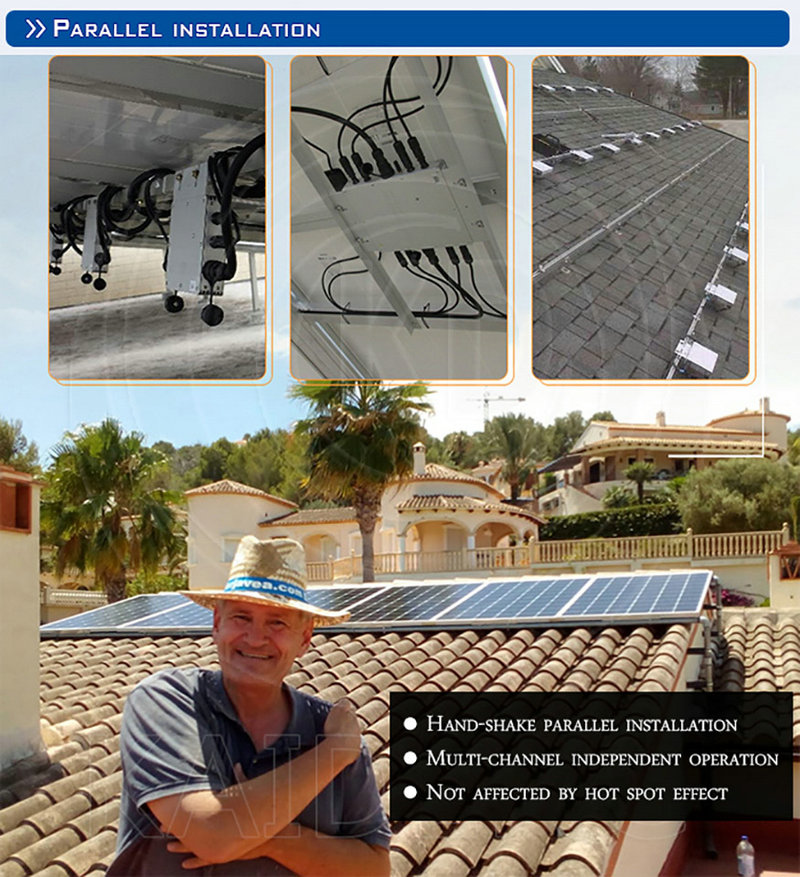

The circuit of the micro inverter is parallel circuit, take the handshaking installation, at the same time to ensure the safety of the staff, even non-professional electricians will not be hurt;

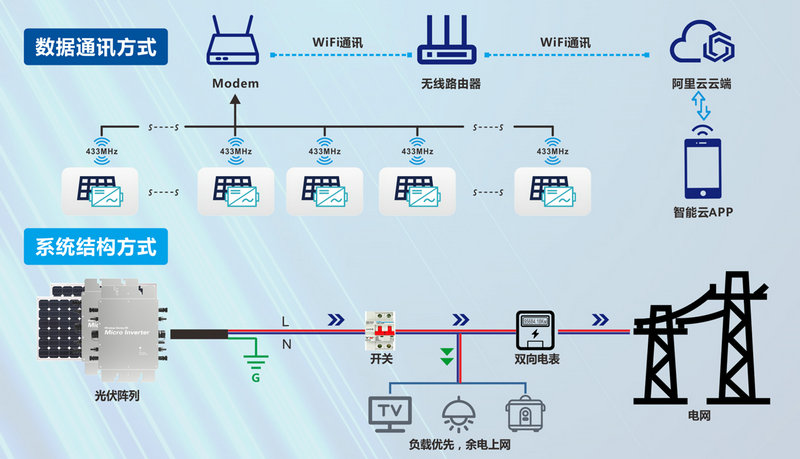

Connection mode:

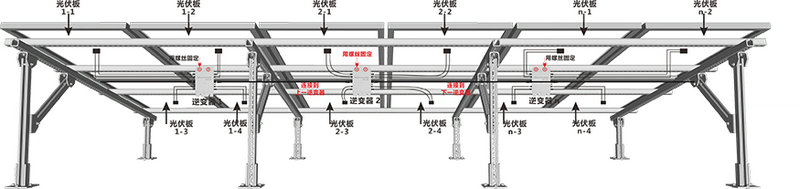

Fixed mode:
Application field
1. Household field: Solve the domestic electricity, such as lighting, TV, radio recorder, etc.;
2. Traffic field: traffic signal lights, street lamps, high-altitude obstacle lights, highway/railway wireless phone booths, power supply for unattended road shifts, etc.;
3. Communication field: microwave relay station, cable maintenance station, etc.;
4. Environmental field: meteorological, astronomical observation equipment, ocean detection equipment, meteorological/hydrological observation equipment, etc.;
5. Agricultural field: such as constant temperature greenhouse planting, aquaculture, animal husbandry, etc.;
6. Industrial field: 10KW-50MW independent photovoltaic power station, various large parking plant charging piles, etc.;
7. Commercial field: Combining solar power generation with building materials to achieve self-sufficiency in power for large buildings;
Project case
For many end users to provide free in the design of construction guidelines. For example, the user needs to install a photovoltaic system on the roof:
Type of support, selection of solar components, installation Angle of components, heat dissipation and cooling of the system, waterproof beautification and heat insulation of the roof, convenience of daily maintenance of the system, capacity expansion of the system, bearing grade, wind resistance grade, earthquake grade, whether the system accessories are safe and recyclable, etc.
