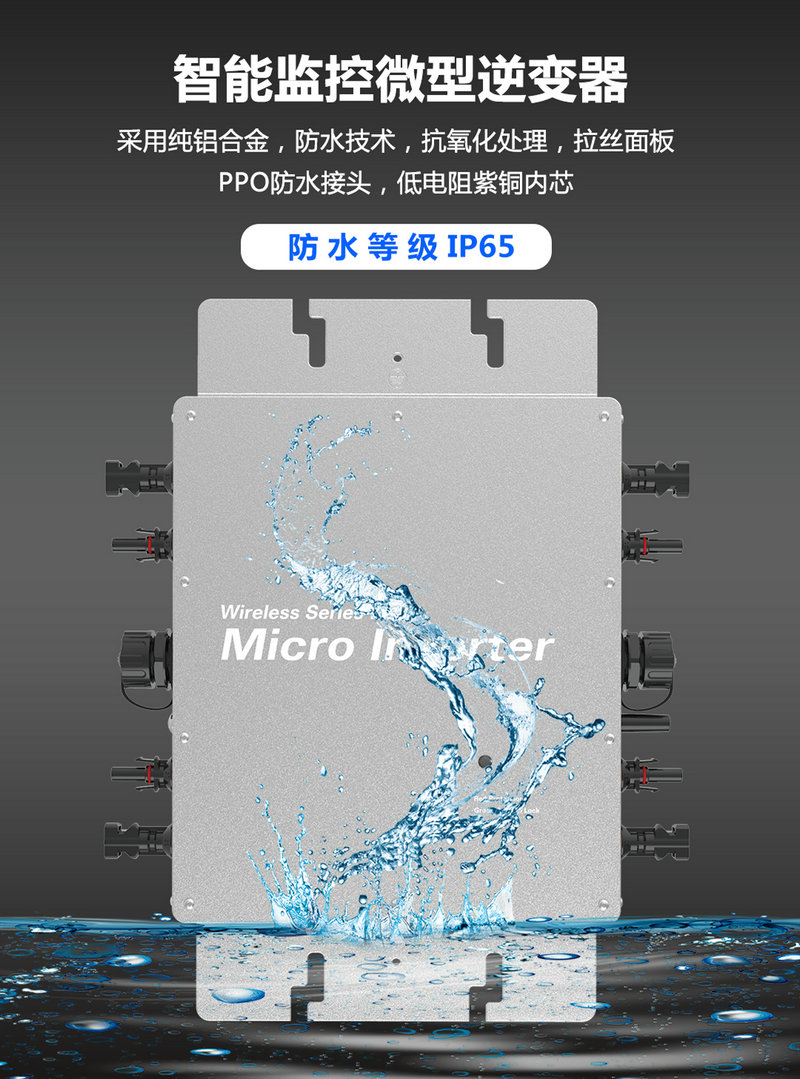

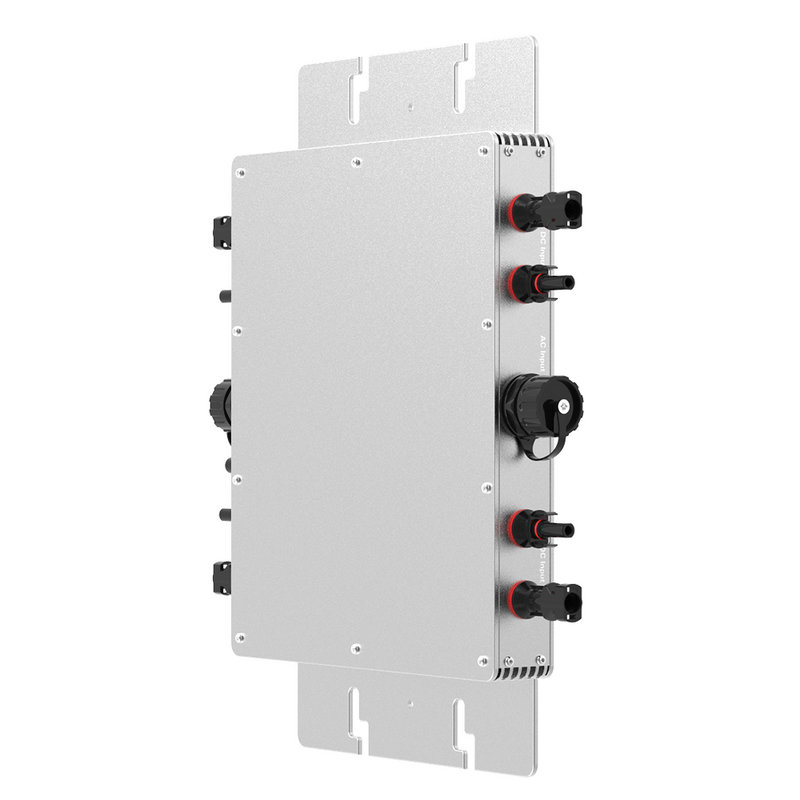

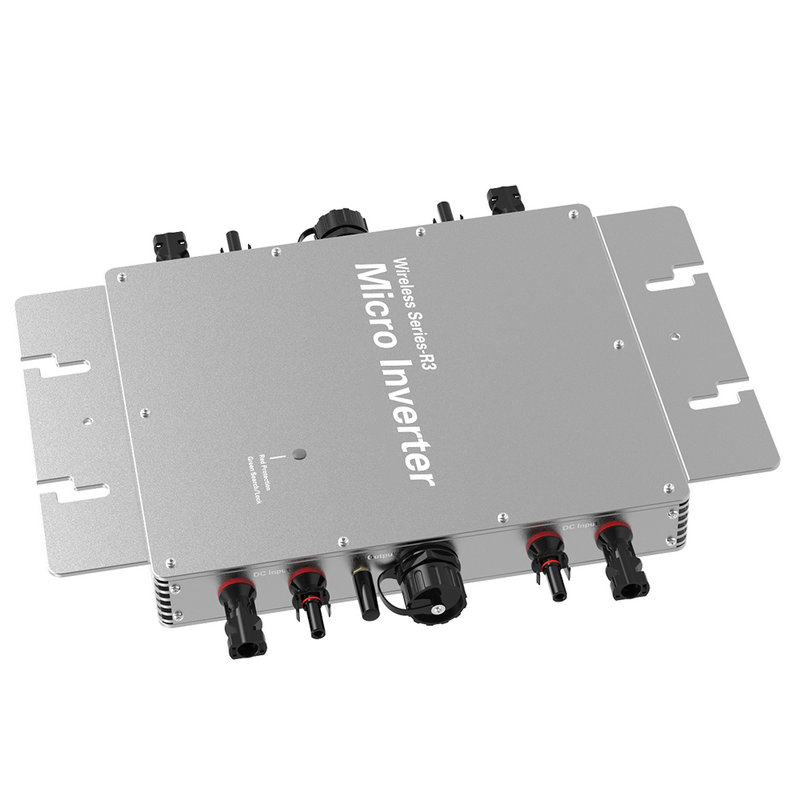

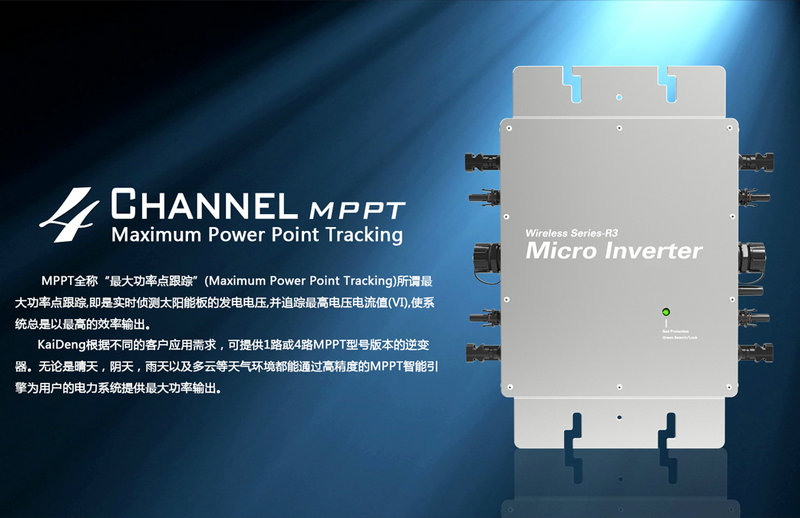

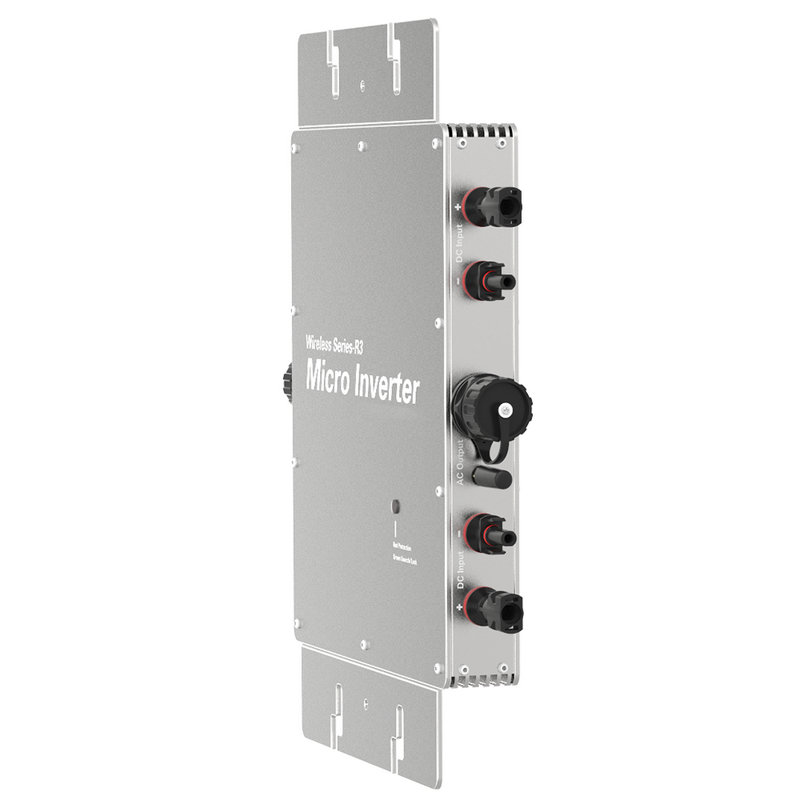

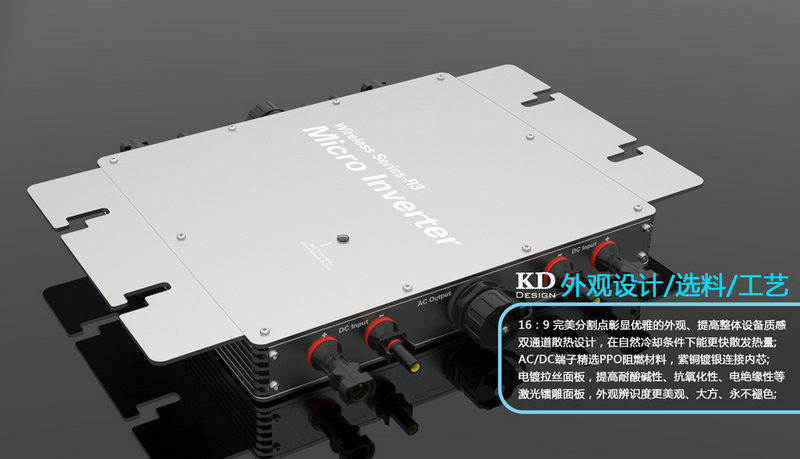

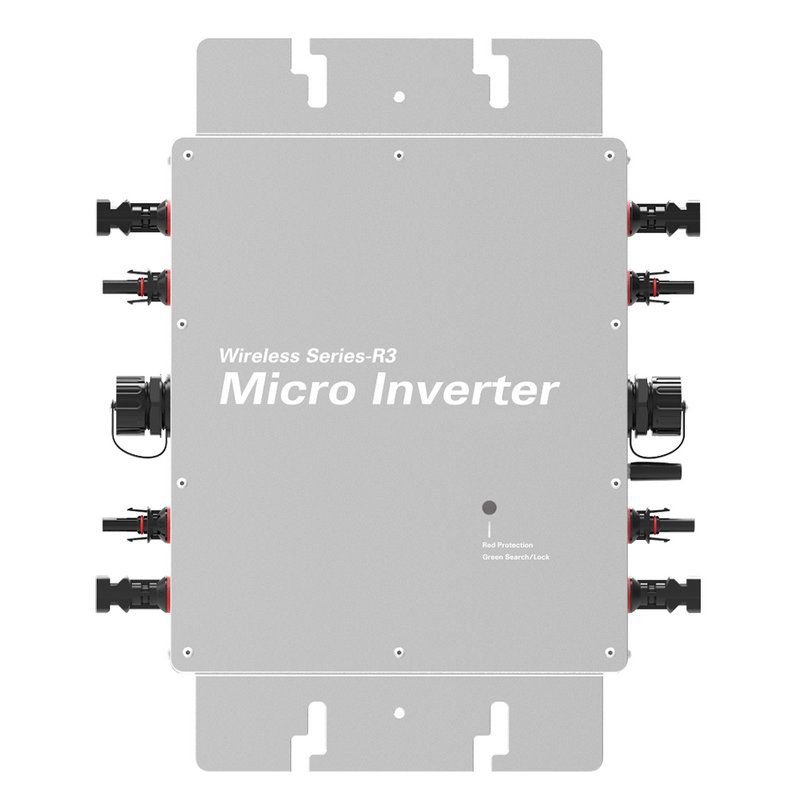

The fifth generation of WVC series communication products using waterproof flow line design, can better provide heat dissipation function for the equipment. The built-in maximum Power Point tracking engine (MPPT) can better capture changes in light, even in rainy weather, through which it can maximize the capture and collection of sunlight. The inverter is compatible with a variety of conventional solar panels with open circuit voltage of 22~60V, and the best performance of the panels can be brought into play through technical means. The power output mode of micro inverter is reverse transmission technology, which gives priority to the power supply to the load, and then upload the excess power to the local grid. Its conversion efficiency is as high as 95%. The products have a number of national invention and appearance patents, and have CE, CEC, ETL, INMETOR and other regional and national product certifications.

Maximum input power: 4*875W

Open circuit voltage range: 30-54V

Maximum working current: 4*27A

Output power: 2800W

Output voltage: 120V/240V

Output current: 23.5A/12.2A

Output frequency: 48-51Hz/58-61Hz

Product introduction：

Product parameter：

Product installation：

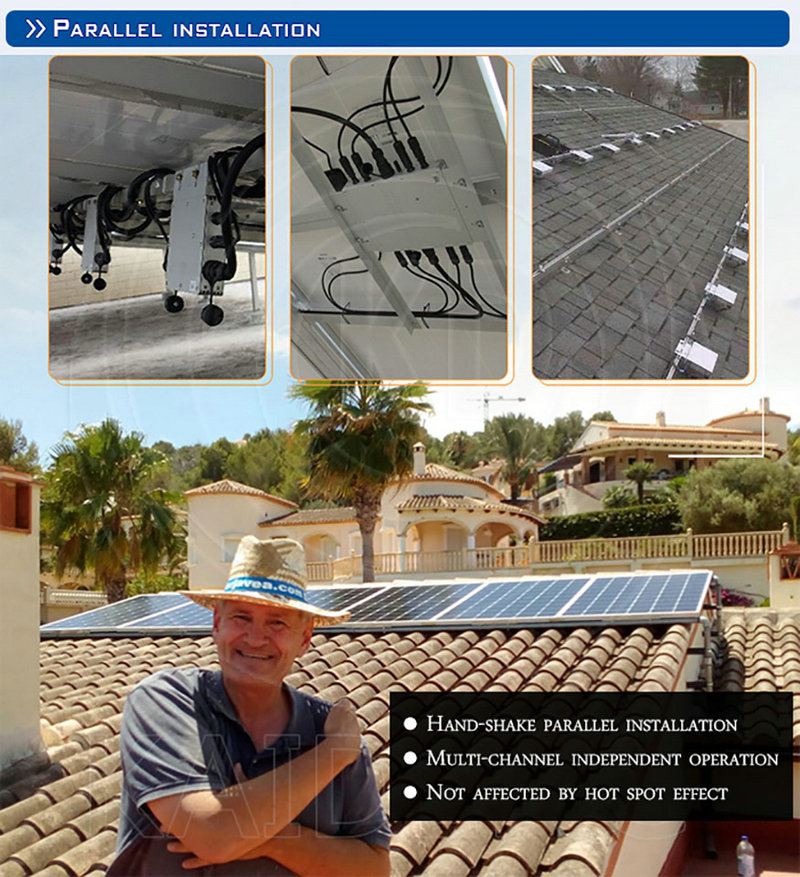

Easy to install

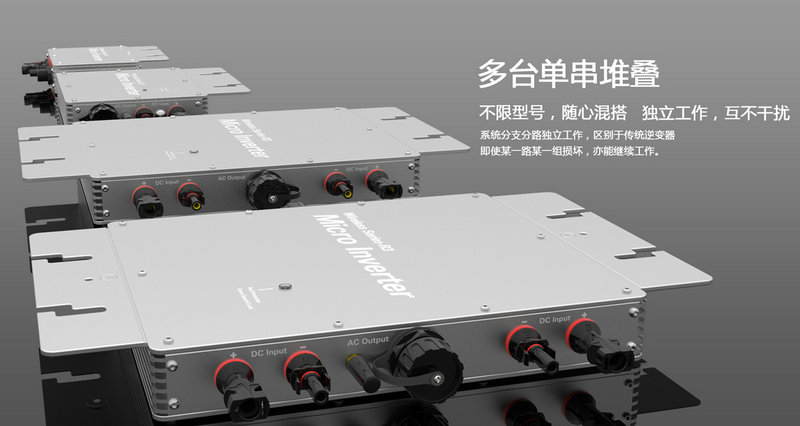

The circuit of the micro inverter is parallel circuit, take the handshaking installation, at the same time to ensure the safety of the staff, even non-professional electricians will not be hurt;

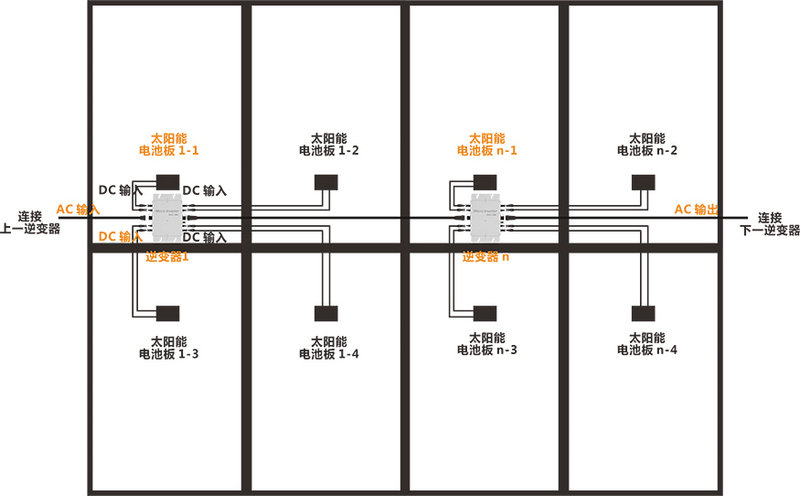

Connection mode:

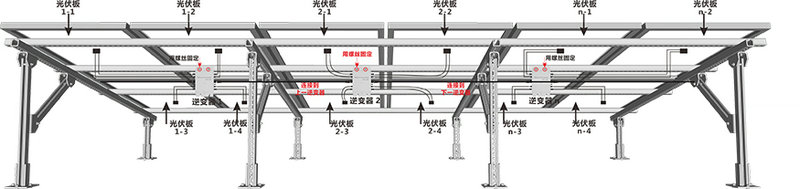

Fixed mode：

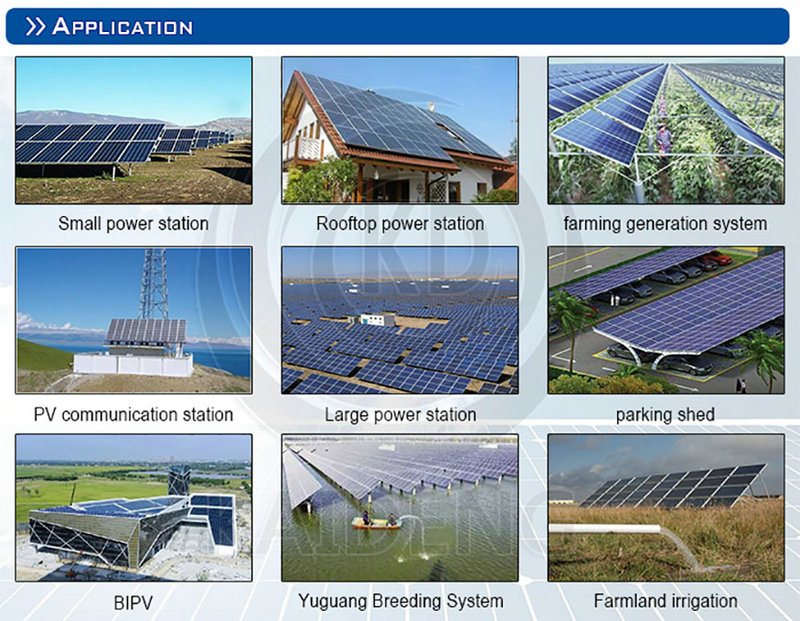

Application field

1. Household field: Solve the domestic electricity, such as lighting, TV, radio recorder, etc.;

2. Traffic field: traffic signal lights, street lamps, high-altitude obstacle lights, highway/railway wireless phone booths, power supply for unattended road shifts, etc.;

3. Communication field: microwave relay station, cable maintenance station, etc.;

4. Environmental field: meteorological, astronomical observation equipment, ocean detection equipment, meteorological/hydrological observation equipment, etc.;

5. Agricultural field: such as constant temperature greenhouse planting, aquaculture, animal husbandry, etc.;

6. Industrial field: 10KW-50MW independent photovoltaic power station, various large parking plant charging piles, etc.;

7. Commercial field: Combining solar power generation with building materials to achieve self-sufficiency in power for large buildings;

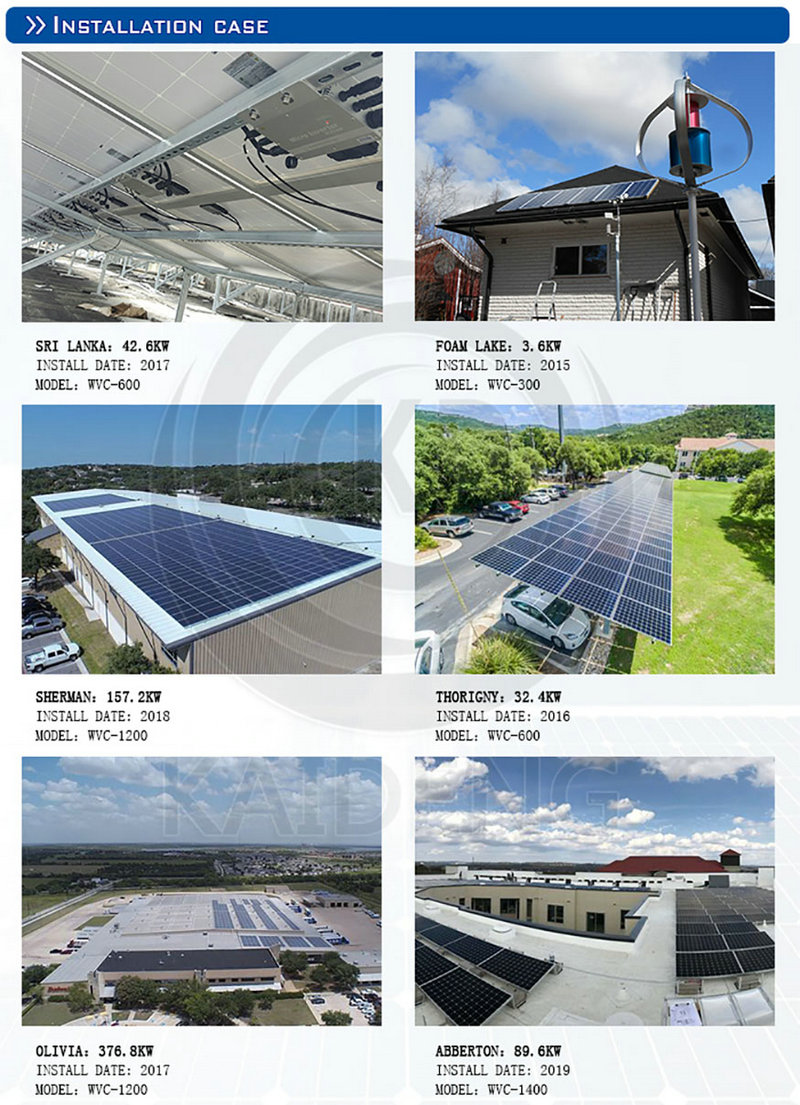

Project case

Kaiden Energy provides design and construction guidelines free of charge to many end users. For example, the user needs to install a photovoltaic system on the roof:

Type of support, selection of solar components, installation Angle of components, heat dissipation and cooling of the system, waterproof beautification and heat insulation of the roof, convenience of daily maintenance of the system, capacity expansion of the system, bearing grade, wind resistance grade, earthquake grade, whether the system accessories are safe and recyclable, etc.

PDF download>>>

611c76858c878.pdf
