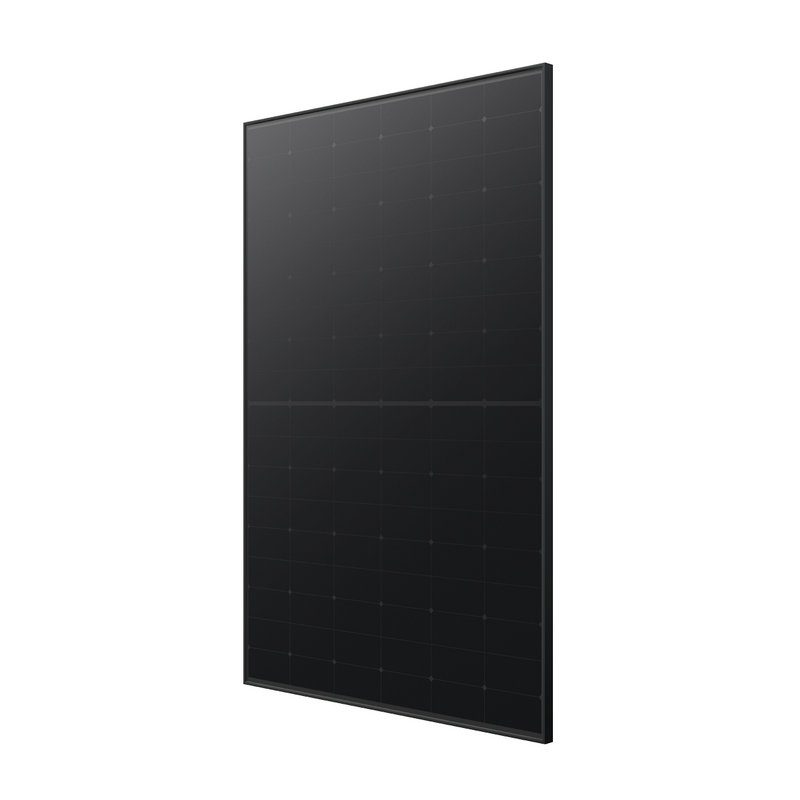

Details
High efficiency battery
HPBC battery, efficiency breakthrough 25%
Aesthetics of appearance
Turn complex into simple, new definition of component aesthetics
Ultra-high efficiency
Through the comprehensive upgrade of battery and module technology, the power generation capacity is greatly improved
Solid and reliable
First all back welding, improve the resistance to hidden crack

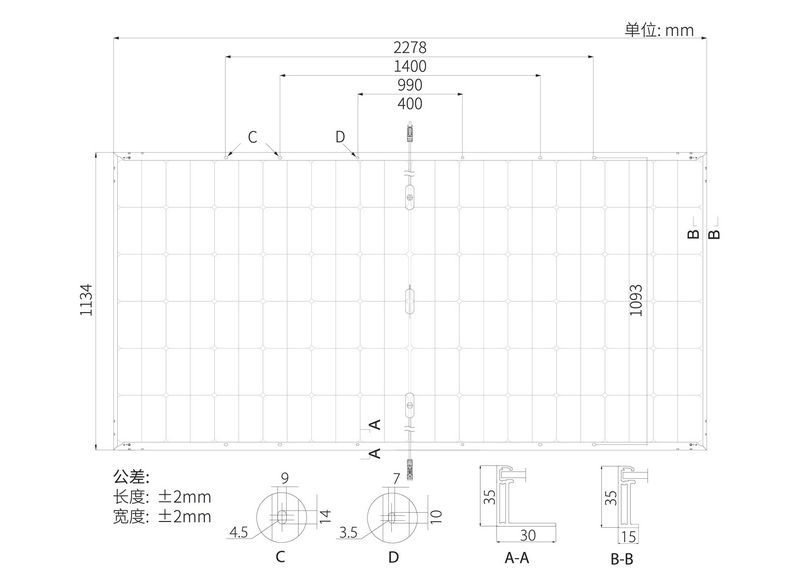

LR5-72HTD
Battery arrangement: 144 (6X24)
Junction box: Split junction box, IP68, 3 diodes
Component weight: 32.6kg
Component size: 2278X1134X35mm
Packaging information
31 RMB/pallet
155pcs / 20ft flat cabinet
620 pieces /40 feet high cabinet
682 pieces / 13.5m flatbed car
806 pieces /17.5 meters flat car

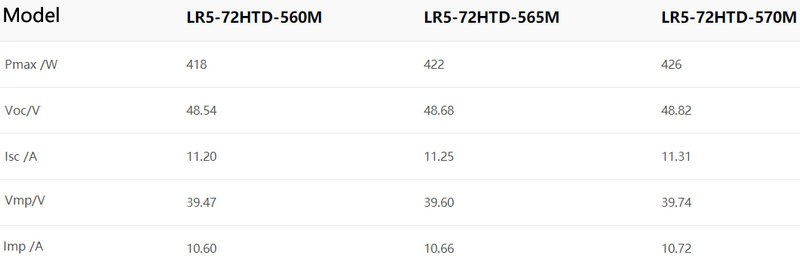

Electrical performance parameters (STC test)
STC: Standard Test Conditions
Electrical performance parameters (NOTC test)
NOCT: rated Normal Operating Cell Temperature
Load capacity
Maximum positive static load (e.g. snow, wind) : 5400Pa
Maximum static load on back (such as wind) : 2400Pa
Through the hail test: diameter 25mm, impact speed 23m/s
Temperature coefficient (STC test)
Short-circuit current (Isc) temperature coefficient: +0.050%/℃
Open circuit voltage (Voc) temperature coefficient: -0.230%/°C
Peak power (Pmax) temperature coefficient: -0.290%/°C
STC: Standard Test Conditions

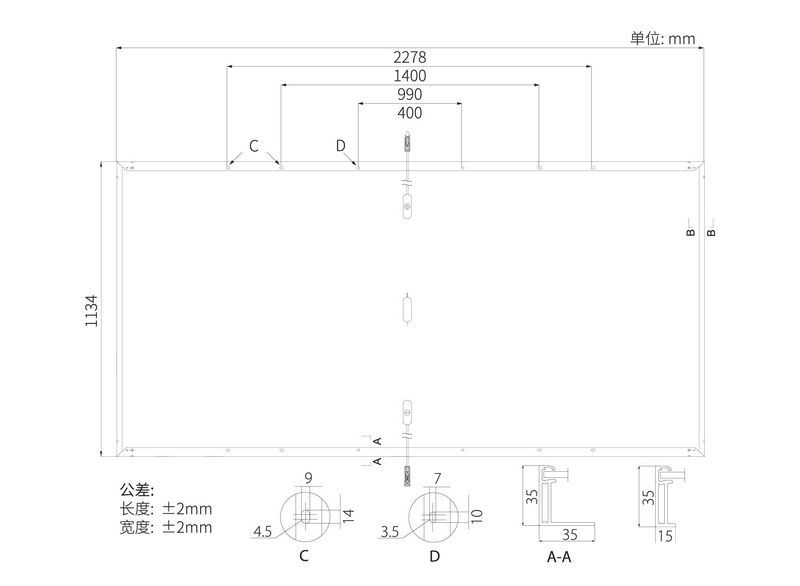

LR5-72HTH
Mechanical parameter
Battery arrangement: 144 (6×24)
Junction box: Split junction box, IP68, 3 diodes
Component weight: 27.5kg
Component size: 2278X1134X35mm
Packaging information
31 RMB/pallet
155pcs / 20ft flat cabinet
620 pieces /40 feet high cabinet
682 pieces / 13.5m flatbed car
930 pieces /17.5 meter flatbed car
Electrical performance parameters (STC test)
STC: Standard Test Conditions

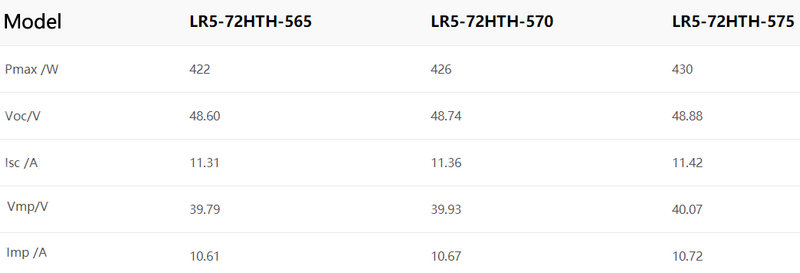

Electrical performance parameters (NOCT test)
NOCT: rated Normal Operating Cell Temperature
Load capacity
Maximum positive static load (e.g. snow, wind) : 5400Pa
Maximum static load on back (such as wind) : 2400Pa
Through the hail test: diameter 25mm, impact speed 23m/s
Temperature coefficient (STC test)
Short-circuit current (Isc) temperature coefficient: +0.050%/℃
Open circuit voltage (Voc) temperature coefficient: -0.230%/°C
Peak power (Pmax) temperature coefficient: -0.290%/°C
STC: Standard Test Conditions

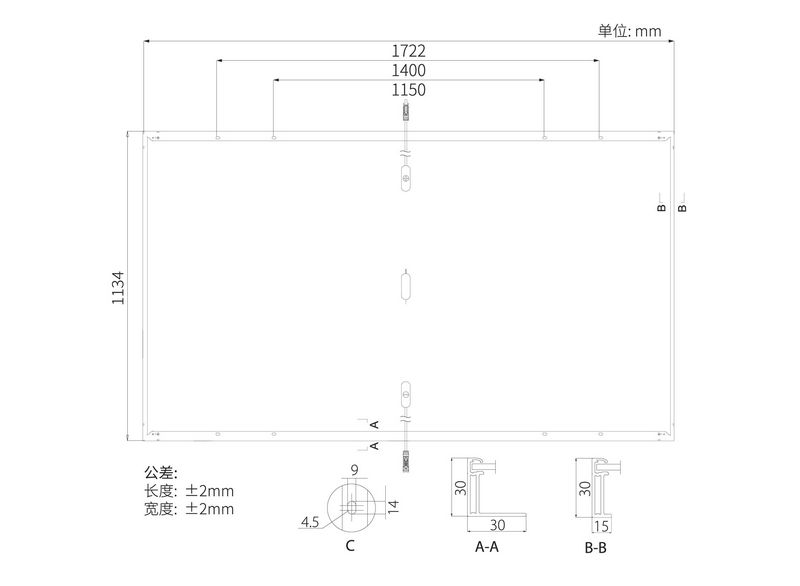

LR5-54HTH
Mechanical parameter
Battery arrangement: 108 (6X18)
Junction box: Split junction box, IP68,3 diodes
Component weight: 20.8kg
Component size: 1722X1134X30mm
Packaging information
36 RMB/pallet
216 pieces /20 feet flat cabinet
936 pieces /40 feet high cabinet
1008 pieces / 13.5m flatbed car
1224 pieces /17.5 meter flatbed car

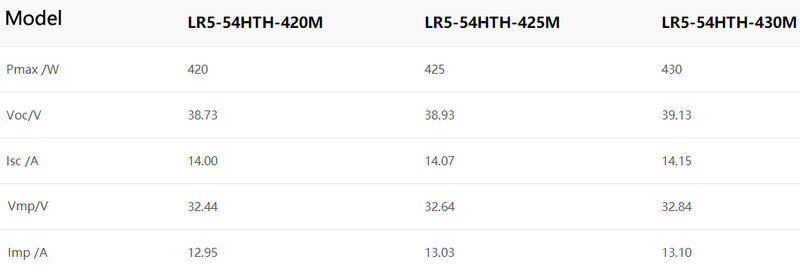

Electrical performance parameters (STC test)
STC: Standard Test Conditions
Electrical performance parameters (NOCT test)
NOCT: rated Normal Operating Cell Temperature
Load capacity
Maximum positive static load (e.g. snow, wind) : 5400Pa
Maximum static load on back (such as wind) : 2400Pa
Through the hail test: diameter 25mm, impact speed 23m/s
Temperature coefficient (STC test)
Short-circuit current (Isc) Temperature coefficient: +0.050%/°C
Open circuit voltage (Voc) temperature coefficient: -0.230%/°C
Peak power (Pmax) temperature coefficient: -0.290%/°C
STC: Standard Test Conditions

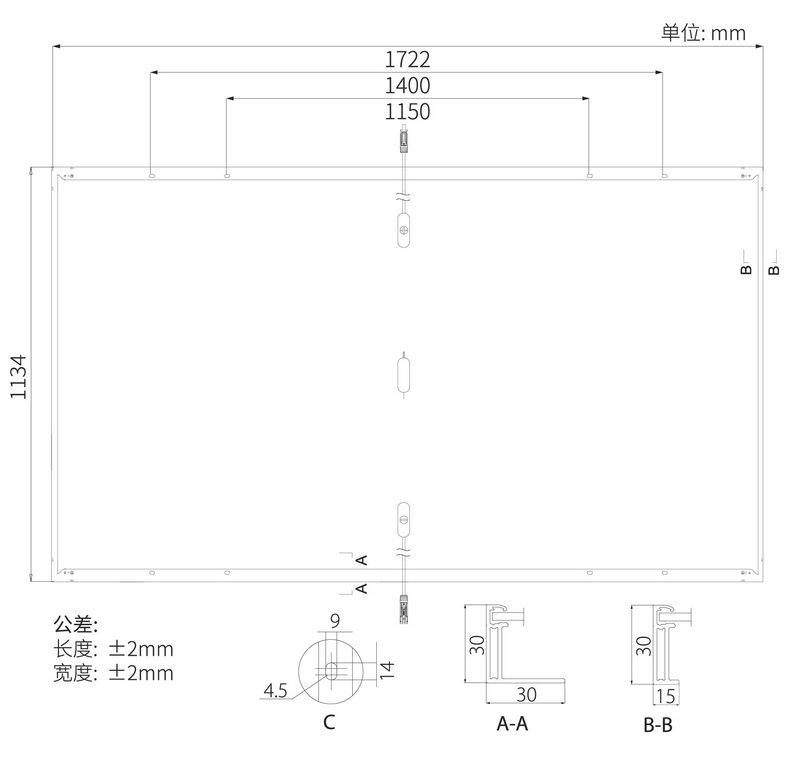

LR5-54HTB
Mechanical parameter
Battery arrangement: 108 (6X18)
Junction box: Split junction box, IP68,3 diodes
Component weight: 20.8kg
Component size: 1722X1134X30mm
Packaging information
36 RMB/pallet
216 pieces /20 feet flat cabinet
936 pieces /40 feet high cabinet
1008 pieces / 13.5m flatbed car
1224 pieces /17.5 meter flatbed car

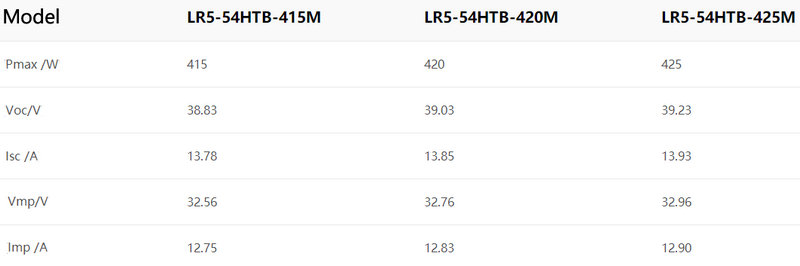

Electrical performance parameters (STC test)
STC: Standard Test Conditions
Electrical performance parameters (NOCT test)
NOCT: rated Normal Operating Cell Temperature
Load capacity
Maximum positive static load (e.g. snow, wind) : 5400Pa
Maximum static load on back (such as wind) : 2400Pa
Through the hail test: diameter 25mm, impact speed 23m/s
Temperature coefficient (STC test)
Short-circuit current (Isc) Temperature coefficient: +0.050%/°C
Open circuit voltage (Voc) temperature coefficient: -0.230%/°C
Peak power (Pmax) temperature coefficient: -0.290%/°C
STC：Standard Test Conditions
