Reasonable component size

M10 silicon wafer with double glass frame design to ensure component load, suitable for two-person handling of component weight, fully consider the manual handling arm span.

Gallium-doped technology

Gallium-doped technology can overcome the optical attenuation of components and guarantee the long-term power generation stability of components.

Packaging and transportation compatibility

Mainstream mature packaging scheme, to achieve high reliability and low cost transportation.

Double-sided power generation

The stacking module generates electricity on the back, with higher comprehensive power generation capacity and power generation gain verified by customers and third parties.

Mechanical parameter

Battery arrangement :144 (6×24)

Junction box: Split junction box, IP68, 3 diodes

Component weight: 32.6kg

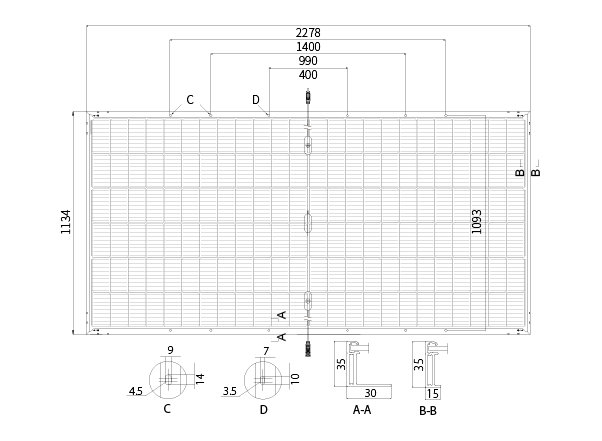

Component size: 2278×1134×35mm

Packaging Information:

31 RMB/pallet

155pcs / 20ft flat cabinet

620 pieces /40 feet high cabinet

682 pieces / 13.5m tablet

806 pieces /17.5 meter tablet

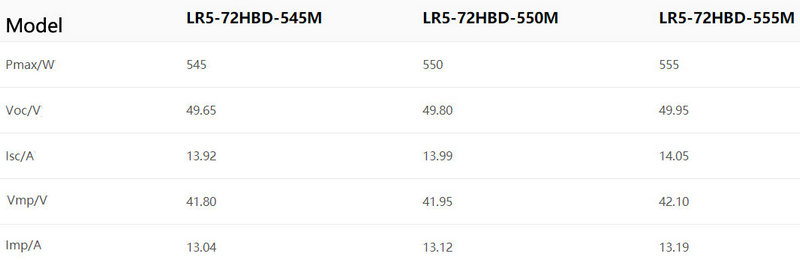

Electrical performance parameters (STC test)

STC: Standard Test Conditions

Electrical performance parameters (NOCT test)

NOCT: rated Normal Operating Cell Temperature

Load capacity

Maximum positive static load (e.g. snow, wind) : 5400Pa

Maximum static load on back (such as wind) : 2400Pa

Through the hail test: diameter 25mm, impact speed 23m/s

Temperature coefficient (STC test)

Short-circuit current (Isc) temperature coefficient: +0.050%/℃

Open circuit voltage (Voc) temperature coefficient: -0.265%/℃

Peak power (Pmax) temperature coefficient: -0.340%/℃

STC: Standard Test Conditions
