Electrical compatibility

The working current is lower than 11A, which can be used in distributed projects to match various inverters and power optimizers. The moderate current avoids high line loss.

Multi-grid design

The 9BB grid design allows for better current collection.

Multi-plate design

Width standardization, length selection: make full use of limited roof area, achieve maximum installation capacity.

Installation and adaptation compatibility

Suitable for various installation scenarios, including tilting roof, flat roof with dip Angle, flat roof "man" layout.

Gallium-doped technology

Gallium-doped technology can overcome the optical attenuation of components and guarantee the long-term power generation stability of components.

Model 60

Mechanical parameter

Battery arrangement：120 (6 x 20)

Junction box：IP68, split, 3 diodes

Component weight：19.5 kg

Component size：1755 * 1038 * 35 mm

Packaging information

30 RMB/pallet

180pcs / 20ft flat cabinet

780 yuan /40 feet high cabinet

840 pieces / 13.5m tablet

1320 pieces /17.5 meter slab

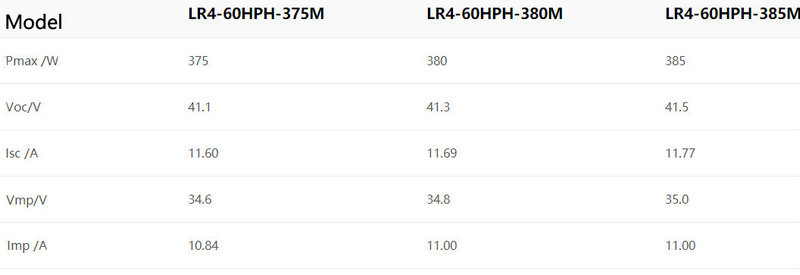

Electrical performance parameters (STC test)

STC: Standard Test Conditions

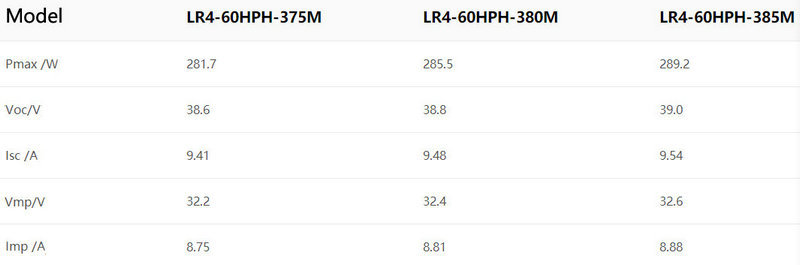

Electrical performance parameters (NOTC test)

NOCT: rated Normal Operating Cell Temperature

Load capacity

Maximum positive static load (e.g. snow, wind) : 5400Pa

Maximum static load on back (such as wind) : 2400Pa

Through the hail test: diameter 25mm, impact speed 23m/s

Temperature coefficient (STC test)

Short-circuit current (Isc) temperature coefficient: +0.050%/℃

Open circuit voltage (Voc) temperature coefficient: -0.265%/℃

Peak power (Pmax) temperature coefficient: -0.340%/℃

STC: Standard Test Conditions

Model 72

Mechanical parameter

Battery arrangement: 144 (6×24)

Junction box: IP68, split, 3 diodes

Component weight: 24.3kg

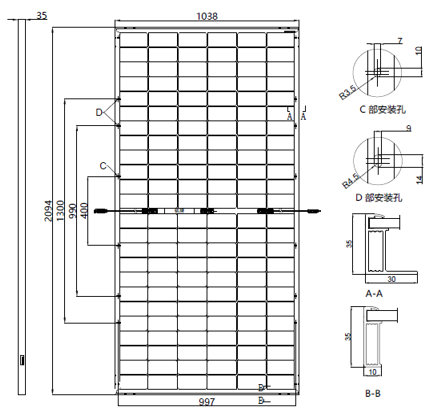

Component size: 2094×1038×35mm

Packaging information

30 RMB/pallet

$150 /20 'flat cabinet

660 pieces /40 feet high cabinet

660 pieces / 13.5m tablet

960 pieces /17.5 meter slab

Electrical performance parameters (STC test)

STC: Standard Test Conditions

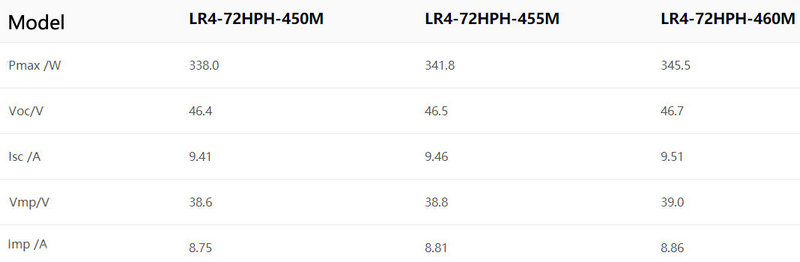

Electrical performance parameters (NOCT test)

Load capacity

Maximum positive static load (e.g. snow, wind) : 5400Pa

Maximum static load on back (such as wind) : 2400Pa

Through the hail test: diameter 25mm, impact speed 23m/s

Temperature coefficient (STC test)

Short-circuit current (Isc) temperature coefficient: +0.050%/℃

Open circuit voltage (Voc) temperature coefficient: -0.265%/℃

Peak power (Pmax) temperature coefficient: -0.340%/℃

STC：标准测试条件（Standard Test Conditions）
