Basic information：
Half a battery:
The working current of half battery is reduced, and the power of double-sided components is increased and the power generation capacity under high irradiation.
Multi-grid design:
The 9BB grid design allows for better current collection.
Mechanical load:
Frame can withstand positive/back 5400/2400Pa load, suitable for matching tracking bracket.
Low attenuation:
LID and PID resistance, the first year attenuation of components is less than 2%, linear attenuation is less than 0.45%.
High pressure rating:
The glass and terminal box have high voltage rating and support 1500V system.
Mainstream standard components:
Compatible with the mainstream inverter and support, the system match worry-free.
Double-sided power generation:
The stacking module generates electricity on the back, with higher comprehensive power generation capacity and power generation gain verified by customers and third parties.
Gallium-doped technology:
Gallium-doped technology can overcome the optical attenuation of components and guarantee the long-term power generation stability of components.
Mechanical parameter
Battery arrangement：144 (6×24)
Junction box：Split junction box, IP68, 3 diodes
Component weight：27.5 kg

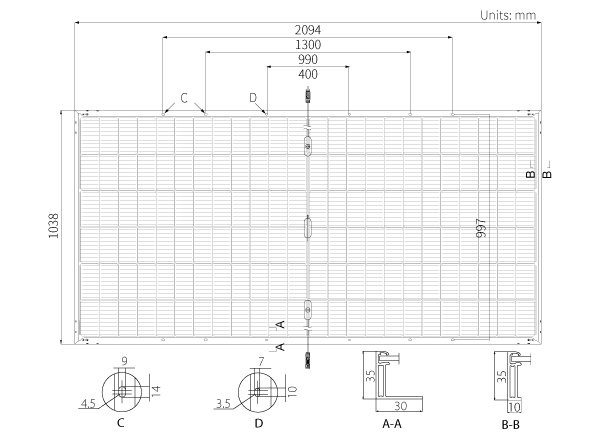

Component size：2094 * 1038 * 35 mm
Packaging information：
31 RMB/pallet
155pcs / 20ft flat cabinet
682 pieces /40 feet high cabinet
682 pieces / 13.5m tablet
930 pieces /17.5 meter slab

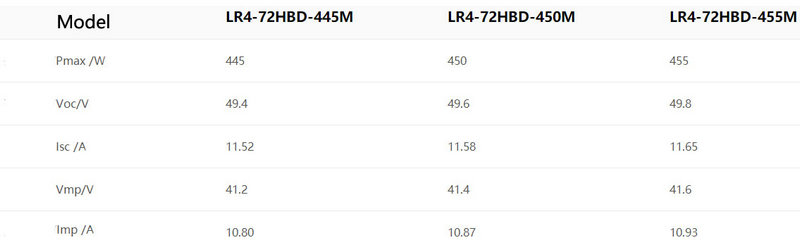

Electrical performance parameters (STC test)
STC：标准测试条件（Standard Test Conditions）
Electrical performance parameters (NOCT test)
NOCT: rated Normal Operating Cell Temperature
Load capacity
Maximum positive static load (e.g. snow, wind) : 5400Pa
Maximum static load on back (such as wind) : 2400Pa
Through the hail test: diameter 25mm, impact speed 23m/s
Temperature coefficient (STC test)
Temperature coefficient of short circuit current (Isc)：+ 0.050% / ℃
Open circuit voltage (Voc) temperature coefficient：0.265% / ℃
Peak power (Pmax) temperature coefficient：0.340% / ℃
STC：标准测试条件（Standard Test Conditions）
