Details
Three pieces /MBB/480-505W
Single crystal components: 150 pieces
Output power: 480-505W
Maximum efficiency: 21.1%
Power tolerance: 0~+5W

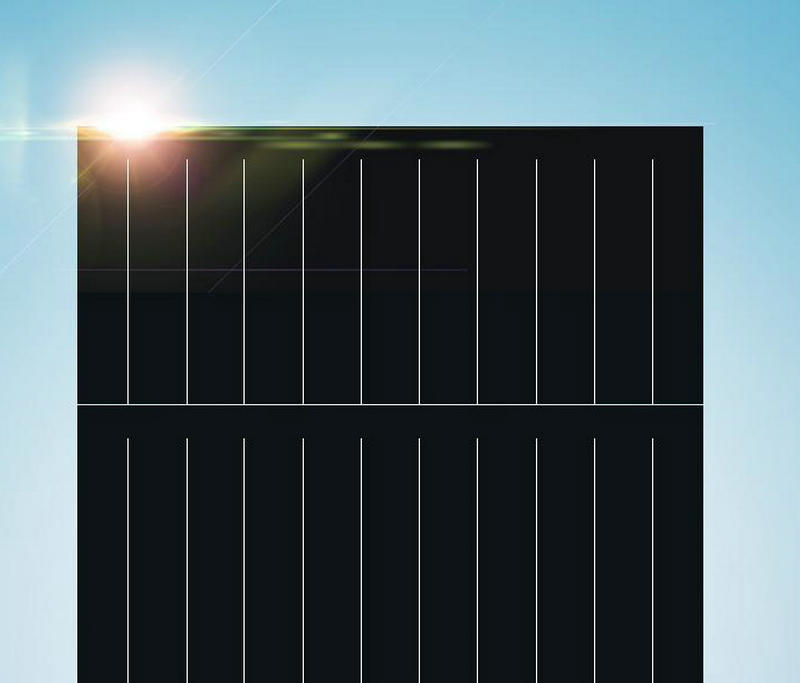

500W+ Ultra high power, 21.1% component efficiency
The Supreme series is based on 210mm large size silicon wafers, PERC single crystal cells, using innovative version design, power can break 500W, efficiency up to 21.1%, leading the industry formally into the new era of photovoltaic 5.0. The excellent temperature coefficient and low irradiation performance of the Supreme series improve the energy generation of the components, which is large and extraordinary. Instead of simply stacking power, the efficiency of the components increases simultaneously, up to 21.1%.

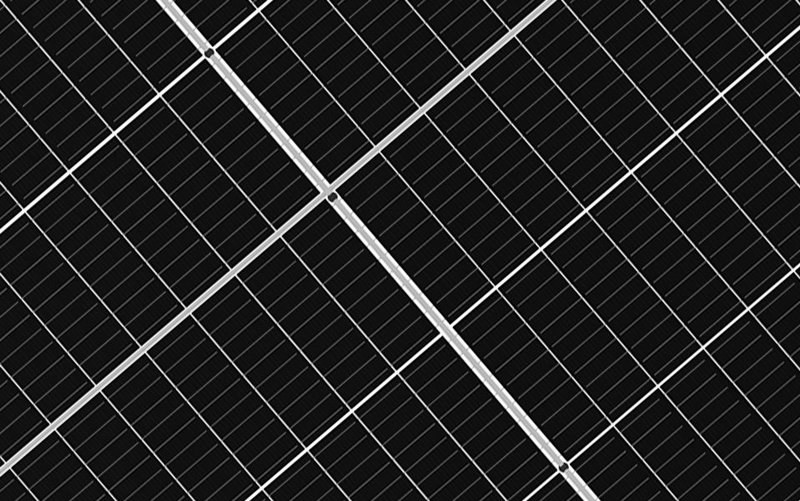

Innovative technology integration: three fragments, MBB
Based on the company's advantages of multi-main grid technology, the R&D team has innovated and launched the version design of superposition three slices, lossless cutting, high density packaging and other advanced technologies, which further reduces the resistance loss, significantly improves the component resistance to hidden cracks and heat spots, and maximizes the utilization of space, so as to achieve high power generation component products with high efficiency, high power and high reliability.
Excellent product reliability
Low heat spot temperature, reduce the failure rate, significantly improve the safety performance. The stress distribution of multiple main grids against hidden cracks is more uniform, and slight hidden cracks or fragments do not affect the power generation, with higher reliability. Trina Solar's MBB technology is mature, and the cumulative shipment of components equipped with MBB technology is far ahead.
Download information >>>
