Details
Double-sided/three-piece /MBB/485-505W
Single crystal components: 150 pieces
Output power: 485-505W
Maximum efficiency: 21%
Power tolerance: 0~+5W
500W+ Ultra high power, 21% component efficiency

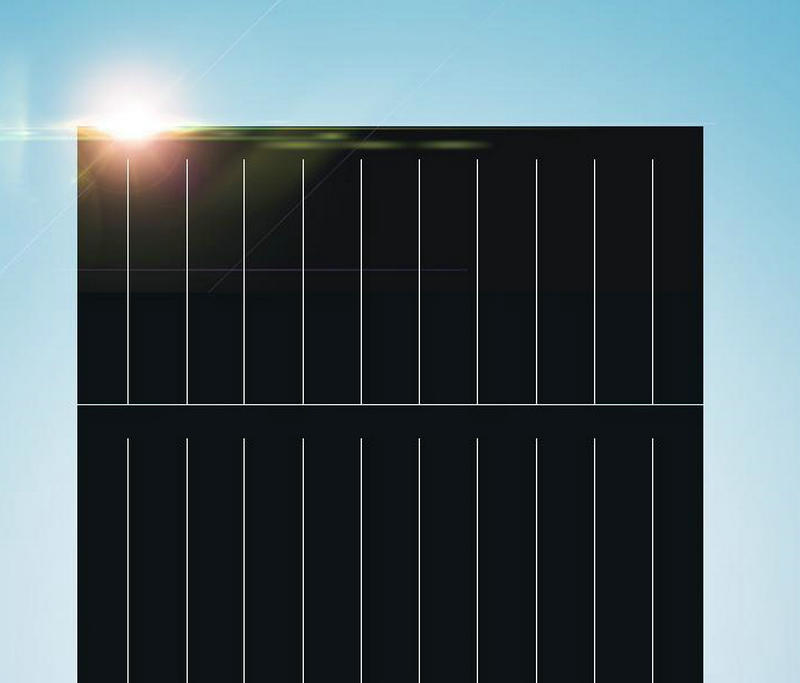

The Supreme series is based on 210mm large size silicon wafers, PERC single crystal cells, using innovative version design, power can break 500W, efficiency up to 21%, leading the industry formally into the new era of photovoltaic 5.0. The back of the Supreme module can increase the power generation by 5%-30%, while the excellent temperature coefficient and low irradiation performance also increase the power generation. Large and extraordinary, not simple stacking power, component efficiency increases synchronously, up to 21%.
Innovative technology integration: three fragments, MBB
Based on the company's advantages of multi-main grid technology, the R&D team has innovated and launched the version design of superposition three slices, lossless cutting, high density packaging and other advanced technologies, which further reduces the resistance loss, significantly improves the component resistance to hidden cracks and heat spots, and maximizes the utilization of space, so as to achieve high power generation component products with high efficiency, high power and high reliability.
Supreme Component System integration solution

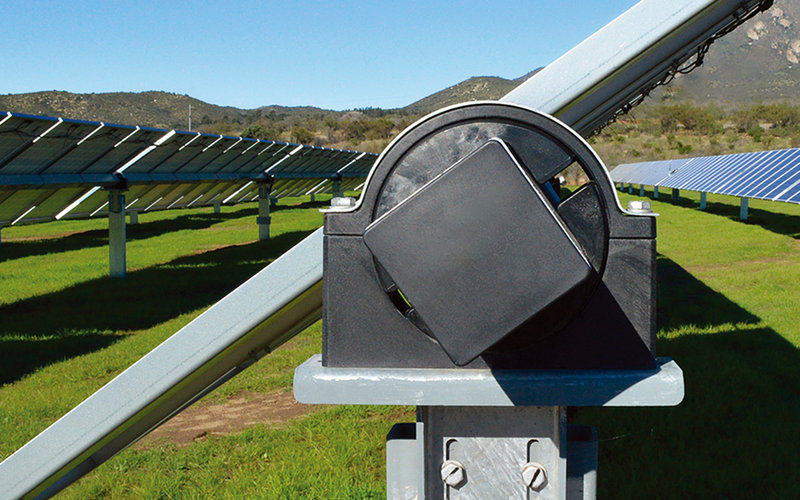

The Supreme series components are compatible with the market mainstream inverter and bracket systems. Trina Intelligent optimal solution, on the basis of Trina Supreme series components, with customized design of NCLAVE support, the new system design scheme to ensure the safety and reliability of the system at the same time, in order to bring the performance of 210 components to the extreme. In addition, for the special battery structure of the 210 module, Trina Intelligent Allocation research and development team will develop a new algorithm model, which can bring an additional 1-2% power generation gain.
