Single crystal components: 110 pieces

Output power: 535-555W

Maximum efficiency: 21.2%

Power tolerance: 0~+5W

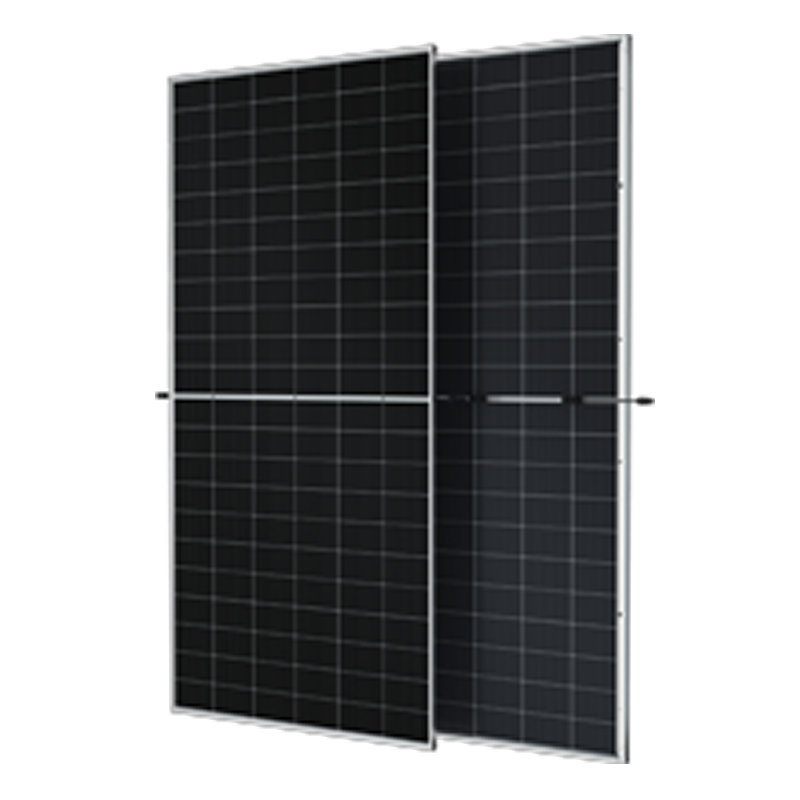

550W+ Ultra high power, 21.2% module efficiency

The Supreme series is based on 210mm large size silicon wafer, PERC single crystal battery, using innovative density version design, power can break 550W, efficiency up to 21.2%. The excellent temperature coefficient and low irradiation performance of the Supreme series improve the energy generation of the components, which is large and extraordinary. Instead of simply stacking power, the efficiency of the components is improved simultaneously.

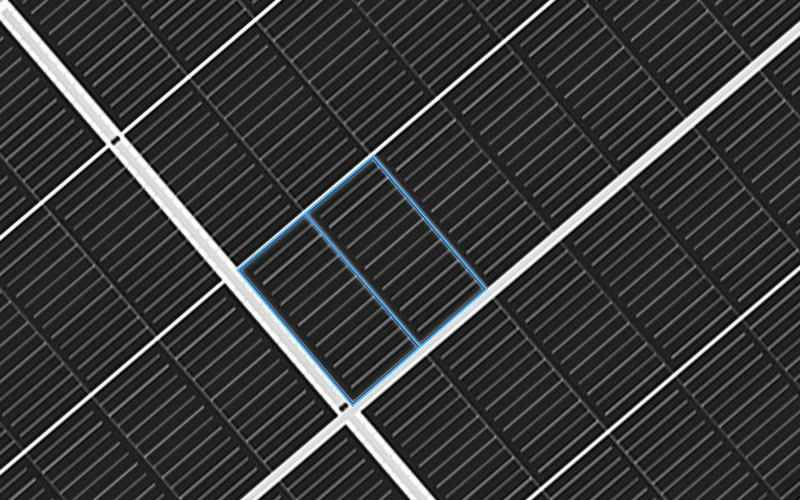

Innovator: high density packaging and MBB

Based on the company's advantages of multi-main grid technology, the research and development team innovates and introduces the version design of advanced technologies such as lossless cutting and high-density packaging, which further reduces the resistance loss, significantly improves the component's resistance to hidden cracks and heat spots, and maximizes the utilization of space, so as to realize the high power generation component products with high efficiency, high power and high reliability.

Excellent product reliability

The low heat spot temperature of the Supreme component reduces the failure rate and significantly improves the safety performance. The stress distribution of multiple main grids against hidden cracks is more uniform, and slight hidden cracks or fragments do not affect the power generation, with higher reliability. Trina Solar's MBB technology is mature, and the cumulative shipment of components equipped with MBB technology is far ahead.
