Product imformation：
48V 200Ah(10Kwh) Deep Cycle LiFePO4 Battery with BMS 6000 times deep cycle charge and discharge. Iron phosphate-lithium power battery. Higher energy density, smaller volumn for household. Support connected in parallel mode for expansion. Photovoltaic system: This battery pack is designed for household photovoltaic systems.
Model: VL-BOX1Product
specification: 51.2V200AhBattery
Voltage: 51.2VBattery
Capacity: 200AhCycle
Life: >6000timesCommunication
interface: RS485、RS232、CAN(Optional)
Communication: SMA, Growatt, Voltronic Power, Solis, Solax, Sungrow, Sofar,Goodweetc
Warranty:5 years for machinery warranty
Voltai’ Lifepo4 battery pack is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS. BMS with improted chips and MOS,with balancing function and dual protection, has a wide range of performance and application advantages compared with conventional battery.
White and Black matte coler, Brand new unique design, various size vaild, easy installation, panel customization service, support for parallel expansion for large capacity applications. Customize BMS with various protection and communication functions ensures the reliable battery performance and remote real-time monitoring of battery data.

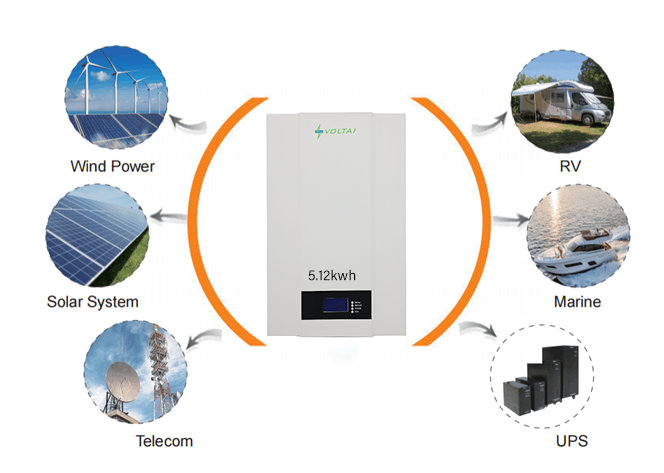

Product Application:
Product Features:
◆High-quality 51.2V LiFePO4 powerwall, safety, deep cycle and long lifespan
◆100Ah and 200Ah powerwall, support up to 15 modules in parallel
◆LCD monitor the energy storage power data and operating status
◆Air cooling to improve the reliability of the product
◆External main switch to reduce product power consumption and improve safety

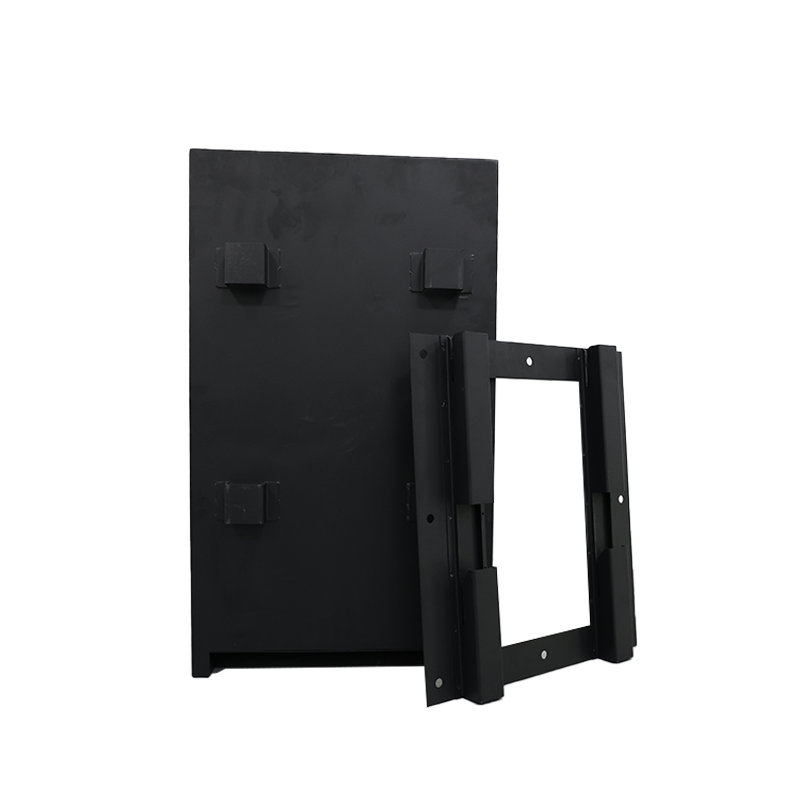

◆Wall brackets, which can meet the installation and use of different place
◆BMS bulit inside, over-voltage, over-load, over-temperature protection, atc
◆Compatible, can be connected to different types of loads within the voltage range
Product Parameter:
Product Model | 51.2V 100AH | 51.2V 200AH |
Rated capacity | 5120WH | 10240WH |
Nominal Voltage | 51.2V | 51.2V |
Nominal Capacity | 100AH | 200AH |
Cell Type | LIFEPO4 | LIFEPO4 |
Standard Charging Voltage | 58.4V | 58.4V |
Max Charge Current | 100AH | 200AH |
Discharge Cut-off Voltage | 40V | 40V |
Max Discharge Current | 100AH | 200AH |
Parallel Function | 8pcs | 8pcs |
Depth of Discharge | >85% | >85% |
Cycle Life | >6000cycles (0.5C) | >6000cycles (0.5C) |
Charging Temperature Range | 0℃~50℃ | 0℃~50℃ |
Discharging Temperate Range | -20℃~60℃ | -20℃~60℃ |
Color | (White and Black) | (White and Black) |
Dimension | L630*W400*H217.5(MM) | L685*W400*H287(MM) |
Weight | Around 45KG | Around 86KG |
Installation Method | Wall Mounted | Wall Mounted |
Communication Interface | CAN, RS485 | CAN, RS485 |
Warranty | 5 years | 5 years |
Package | Wooden Case | Wooden Case |
Product Size:

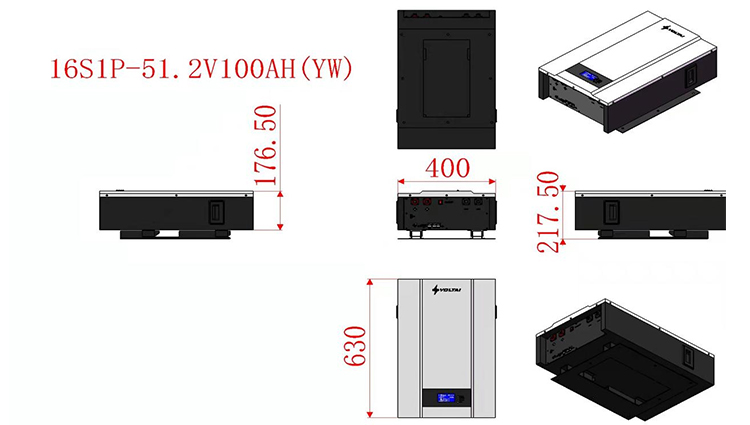

51.2V 100AH—-General View

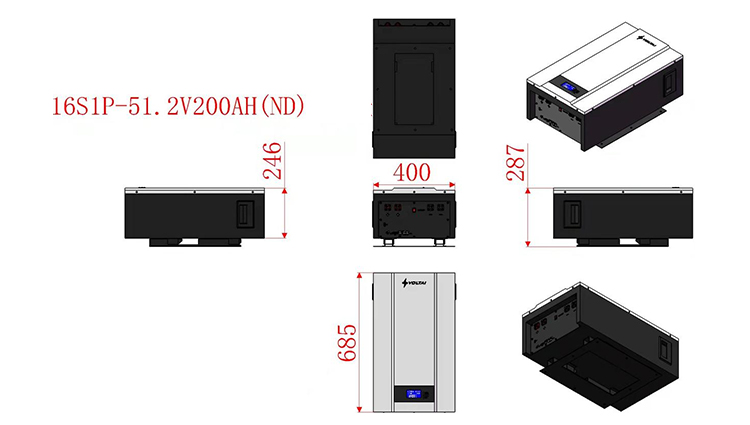

51.2V 200AH—General View

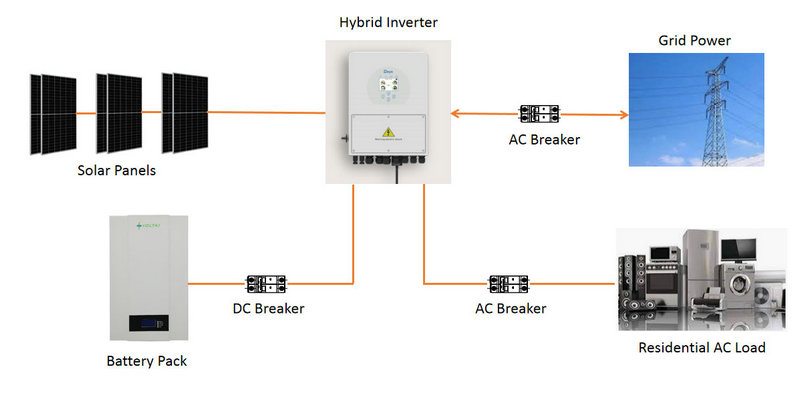

Solar system Connection:

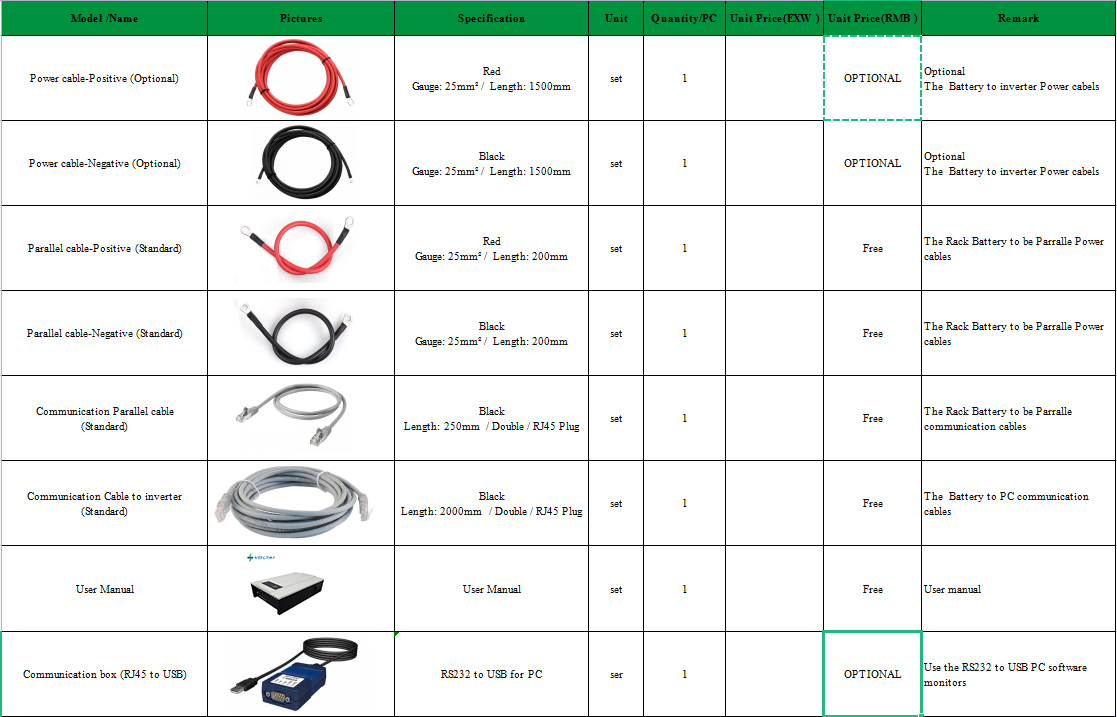

Accessories Details:
All the related accessories are available. We can provide all you need.
Package Details:
